M81714/65 Series II Inline Junction Splice | Double Splice, Size 20

EDMO DISTRIBUTORS, INC

Call For Pricing

Available to order

EDMO # 8171465202

MFR Part # M81714/65-20-2

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The M81714/65 Series II In-Line Junction Splices are available in single and double configurations in sizes 16, 20, and 22 AWG. These splices use an advanced polyetherimide body, one-piece bus assembly and construction. They connect two wires in-line using M39019/22 socket and pin contacts. The junctions can then be placed in a wire bundle without being mounted.

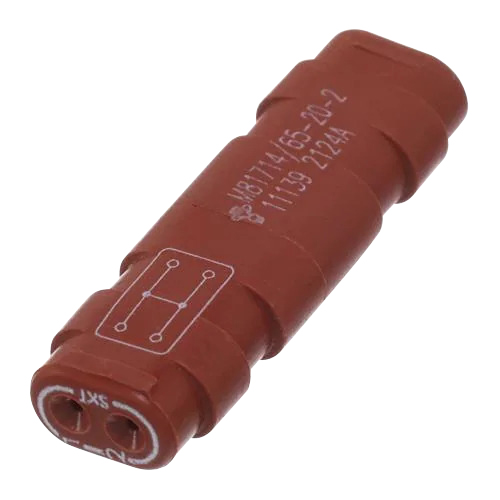

This M81714/65 Series II Inline Junction Splice (EDMO# 8171465202) accepts size 20 contacts and is a double splice.

Features

Connects and busses 4 wires
Houses and seals individual components
Replacement for “Y’ splices and terminal strips
Special configurations and designs available
Uses M39029/22 crimp contacts

Specifications

Operating Temperature:

-55ºC to 200ºC
Insulation Resistance:

5000 MΩ (min)
Dielectric Withstanding Voltage:

1500 VRMS at Sea Level 200 VRMS at 100,000 ft.
Current Rating:

5 A
Vibration & Shock:

Per MIL-T-81714 Paragraph 3.5.5 & 3.5.8
Insulator Body:

Polyerthermide per ASTM-D-5205
Grommet:

Silicone Rubber per A-A-59588
Internal Contact:

Copper Alloy, Gold Finish Accordance with MIL-G-45204
