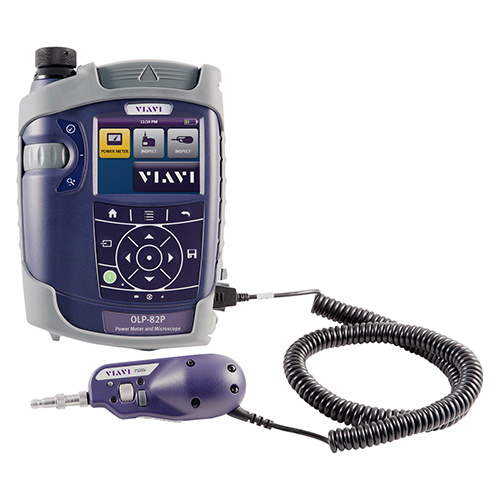

OLP-82P SmartClass Digital Handheld Video Display Pro Kit

VIAVI

Call For Pricing

Available to order

EDMO # 82P01-PRO

MFR Part # FIT-82P01-PRO

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The OLP-82 is ideal for fiber technicians with instant pass/fail acceptance results for both end-face quality and OPM in one button push. It can also save test results and generate certification reports. With these capabilities integrated into one system, the OLP-82 helps technicians to implement best practices in a seamless workflow that optimizes efficiency and reliability while completing the job right the first time.

The OLP-82P Pro Kit (EDMO# 82P01-PRO) comes with a P5000i digital inspection microscope, various inspection tips and adapters for different types of connections, cleaning materials for both 2.5 mm and 1.25 mm connectors, a hands-free carrier for SmartClass Fiber, a rechargeable battery for SmartClass Fiber, and a Visual Fault Locator with adapters for 2.5 mm and 1.25 mm.

Features

Field-portable OPM with multiple calibrated wavelengths from 780 to 1625 nm
Automated pass/fail analysis for fiber inspection and test
Supports both industry-standard and user-definable acceptance criteria
Available with integrated PCM
Integrated connector certification reports
Onboard storage for fiber inspection and test results
Connects to a PC via mini-USB to export data and manage acceptance criteria using FiberChekPRO software
Two USB ports to connect additional devices such as a P5000i microscope
Automatic fiber-image centering
Modern, smartphone-style user interface with touch screen
Rugged, weatherproof design

Specifications

Weight:

1.4 lb (0.6 kg)
Dimensions:

8.2 x 6.0 x 2.5 in (20.8 x 15.2 x 6.4 cm)
Video Display:

3.5 in color LCD, 4:3 ratio
Keypad:

11+2 dome-buttons membrane panels 4-LED indicators
Connector:

USB 2.0 (2 x host, Type A; 1 x device, Micro-B)
Power Source:

AC adapter, battery (Alkaline or rechargeable Li ion), USB port
Battery Run-Time (from AA batteries or AC adapter):

8 hr, rechargable li-ion 5 hr, alkaline
Power Mode:

Active w/ auto-off (user programmable shut-off time)
Recharge Time:

8 hr (AC adapter) 5 hr (USB port) CE, IEC/EN61326 certified
Power Measurement Range:

-50 dBm to 10 dBm (1,300/1,310 nm) -45 dBm to 10 dBm (850 nm) -65 dBm to 10 dBm, display range
