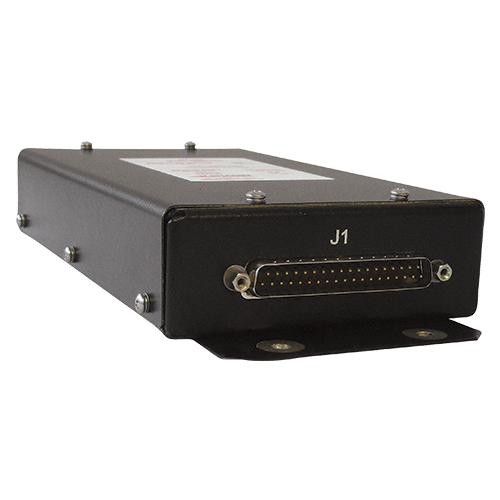

AIS 360 ARINC Buffer/Isolator | High Speed to High Speed, Low Speed to Low Speed

AIS 360 ARINC Buffer/Isolator | High Speed to High Speed, Low Speed to Low Speed

SHADIN LP

Call For Pricing
Available to order
EDMO # 833610-02
MFR Part # 833610-02
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AIS 360 ARINC Buffer/Isolator (EDMO# 833610-02) has two ARINC 429 inputs and two output channels. Labels received on the ARINC 429 low speed input are sent out on the low speed output; and labels received on the ARINC 429 high speed input are sent out on the ARINC 429 high speed output. The AIS 360 digital platform will convert or combine almost any type of digital avionics signal.

Features

  • The AIS 360 provides, but not limited to the following capabilities:
  • ARINC 429 transmit
  • ARINC 429 receive
  • Discrete I/O
  • Bi-directional RS-232
  • Bi-directional RS-422/RS-485
  • Ethernet
  • The AIS 360 digital platform may also be used for:
  • ARINC 429 LS to ARINC 429 HS
  • ARINC 429 to Discrete
  • ARINC 429 to Ethernet
  • Ethernet to ARINC 429
  • ARINC 429 Buffer
  • EFB data converter/concentrator (FMS to EFB)
  • ADS-B converter
  • ADS-B data concentrator
  • ARINC 429/743 data combiner
  • ARINC 429 HS to ARINC 429 LS
  • ARINC 429 filter and combiner
  • CSDB to ARINC 429 and/or ARINC 429 to CSDB
  • ARINC 429 to serial and/or serial to ARINC 429
  • ARINC 429 to NMEA and/or NMEA to ARINC 429
  • Cabin management and entertainment
  • Avionics system integration
  • Protocol Converter
  • Data Concentrator Unit (DCU)
  • Aircraft Interface Device (AID)
  • Aircraft Interface Unit (AIU)

Specifications

  • Weight:
    0.9 lb
  • Dimensions:
    8.5 x 4.0 x 1.59 in
  • Mounting Screw Size :
    #8
  • Mounting Locations:
    7.878 x 1.752 in
  • Power Supply Voltage:
    18 VDC to 33 VDC
  • Supply Current:
    100mA, maximum
  • Protection:
    Not internally fused
  • Inputs:
    ARINC 429: Low Speed, 12 - 14.5 Kbps ±1% ARINC 429: High Speed, 100 Kbps ±1%
  • Outputs:
    ARINC 429: Low Speed, 12 - 14.5 Kbps ±1% ARINC 429: High Speed, 100 Kbps ±1%
  • Environmental RTCA/DO-160F Categories:
    A2-CAB[R(B, B1)U2(F, F1)]XXXXXXZ[AXX]AR[CC][WW]M[A3J33]XXAX
  • Operating Temperature:
    -15°C to 70°C
  • Storage Temperature:
    -55°C to 85°C
  • Operating Altitude:
    Up to 50,000 ft
  • In-Flight Loss of Cooling:
    Equipment can run indefinitely with no cooling
  • MIL-HDBK-217 MTBF:
    30,000 hr

Related Products

Product Codes

  • Mfr Part No
    833610-02
  • ECCN
    7A994
