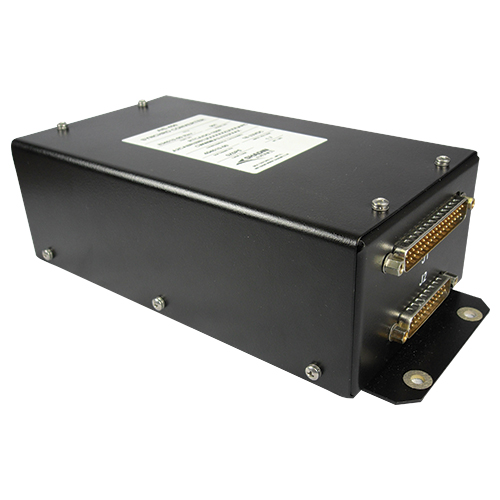

AIS-450 Heading Synchro Output | ARINC 429 Heading to Single Channel ARINC 407

Product Description

The AIS-450 Heading Synchro Output is a digital-to-synchro-based converter that receives angular data (heading) on two ARINC 429 inputs and converts it to one ARINC 407 synchro output (3-wire). The two ARINC 429 inputs are high speed (H/S) and accept only angular ARINC 429 labels for Heading, Pitch, and Roll (ARINC Labels 314, 320, 324, and 325). The ARINC 429 outputs are high speed (H/S) and pass through only the valid angular ARINC 429 labels received on the inputs.

The AIS-450 single channel has one ARINC 407 output that is configured as a 3-wire synchro. The output is mapped to the True or Magnetic Heading ARINC 429 label (314 or 320) depending on the state of the Heading Select Discrete Input. A High/Open state maps the output to Magnetic Heading, and a Low/Ground state maps the output to True Heading. The Synchro Validity Discrete Output indicates whether the ARINC 407 output is valid. The ARINC 429 Input 1 takes priority over the ARINC 429 Input 2.

Specifications

• Weight:
  1.42 lb
• Dimensions:
  8.5 x 4.0 x 2.5 in
• Mounting:
  #8 screw size
• Mount Locations:
  8.00 x 2.00 in
• Power Supply Voltage:
  18 VDC to 33 VDC
• Supply Current:
  520mA, maximum (745mA, maximum including external loads)
• Protection:
  Active current limiting to 2.0 amps
• Inputs:
  ARINC 429: high speed 100 Kbps ±1% 26 VAC reference CH1 and CH3: 24.7 VAC to 27.3 VAC Discrete input (ARINC 763-3): Active: Low / Ground Signal V < 3.5 VDC with I < 20 mA sink or R < 10Ω
• Outputs:
  ARINC 429: high speed 100 Kbps ±1% Synchro-X, Y, and Z (ARINC 407): 0 to 11.8 VAC typical, 12.4 VAC maximum, 0.209 VA into 500Ω each channel Synchro Angle Accuracy: input angle ±0.5% Synchro-Valid-CH1: 28VDC(valid) / open(invalid) discrete, 75mA maximum short circuit protected
• Environmental:
  RTCA/DO-160F Categories: F1-BAB[R(B, B1)]XXXXXXZ[AXX]AR[CC][WW]M[XXXXX]XXAX Operating Temperature: -40°C to 70°C
• Storage Temperature:
  -55°C to 85°C
• Operation Altitude:
  Up to 55,000 ft
• In-Flight loss of Cooling:
  Equipment can run indefinitely with no cooling
• Certification:
  TSO-C5f, TSO-C6e "Incomplete System"

Product Codes

• Mfr Part No
  834511-00
• ECCN
  7A994
• SCHEDULE B CODE
  9014.20.8020
• TSO
  C5f, C6e
