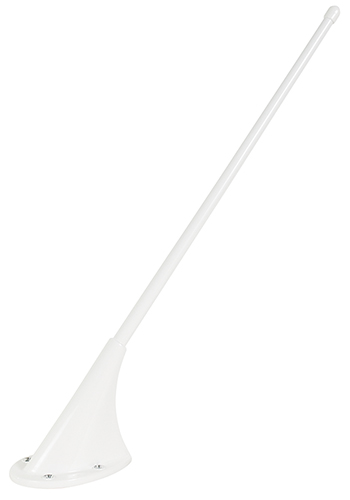

8603 Tri-Band Rod Antenna | 121.5MHz, 243MHz, 406MHz, For ELT 1000

8603 Tri-Band Rod Antenna | 121.5MHz, 243MHz, 406MHz, For ELT 1000

ACR ELECTRONICS / ARTEX

Call For Pricing
Available to order
EDMO # 8603
MFR Part # 8603
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The 8603 Rod Antenna is reinforced with glass and a polyester housing that covers our innovative Tri-Band technology, effectively bringing 121.5, 243, and 406 MHz frequencies in one compact package. This highly efficient antenna provides a single BNC connector for those installations that require a single connector set-up.

Features

  • 121.5, 243 & 406 MHz frequency coverage
  • For use with the ELT 1000

Also Purchased

Specifications

  • Weight:
    0.45 lbs
  • Height:
    15.5 in
  • Frequency:
    121.5, 243 & 406 MHz
  • VSWR:
    121.5/243 MHz: 2.0:1 406 MHz: 1.5:1
  • Polarization:
    Vertical
  • Radiation Pattern:
    Omni-directional
  • Impedance RF:
    50 Ω (nominal)
  • Material:
    Molded radome/fiberglass whip
  • Finish:
    White Glass, Non-Yellowing Paint
  • Connector:
    BNC (female) for 121.5, 243 & 406 MHz
  • Temperature:
    -55ºC to 85ºC
  • Altitude:
    50,000 ft
  • Color:
    White
  • Gasket:
    Cork Gasket Optional

Related Products

Product Codes

  • Mfr Part No
    8603
  • ECCN
    7A994
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C126B
