MicroDim Dimmer Control Unit | 5-35V, 10A, Ring Terminals, I-6 Option

SEATON ENGINEERING

Call For Pricing

Available to order

EDMO # 9100-I-I6

MFR Part # 9100-001-I-OPT I-6

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MicroDim control unit is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At just over an ounce, the device is very light and produces a negligible amount of heat so that heavy heat sinks are not needed.

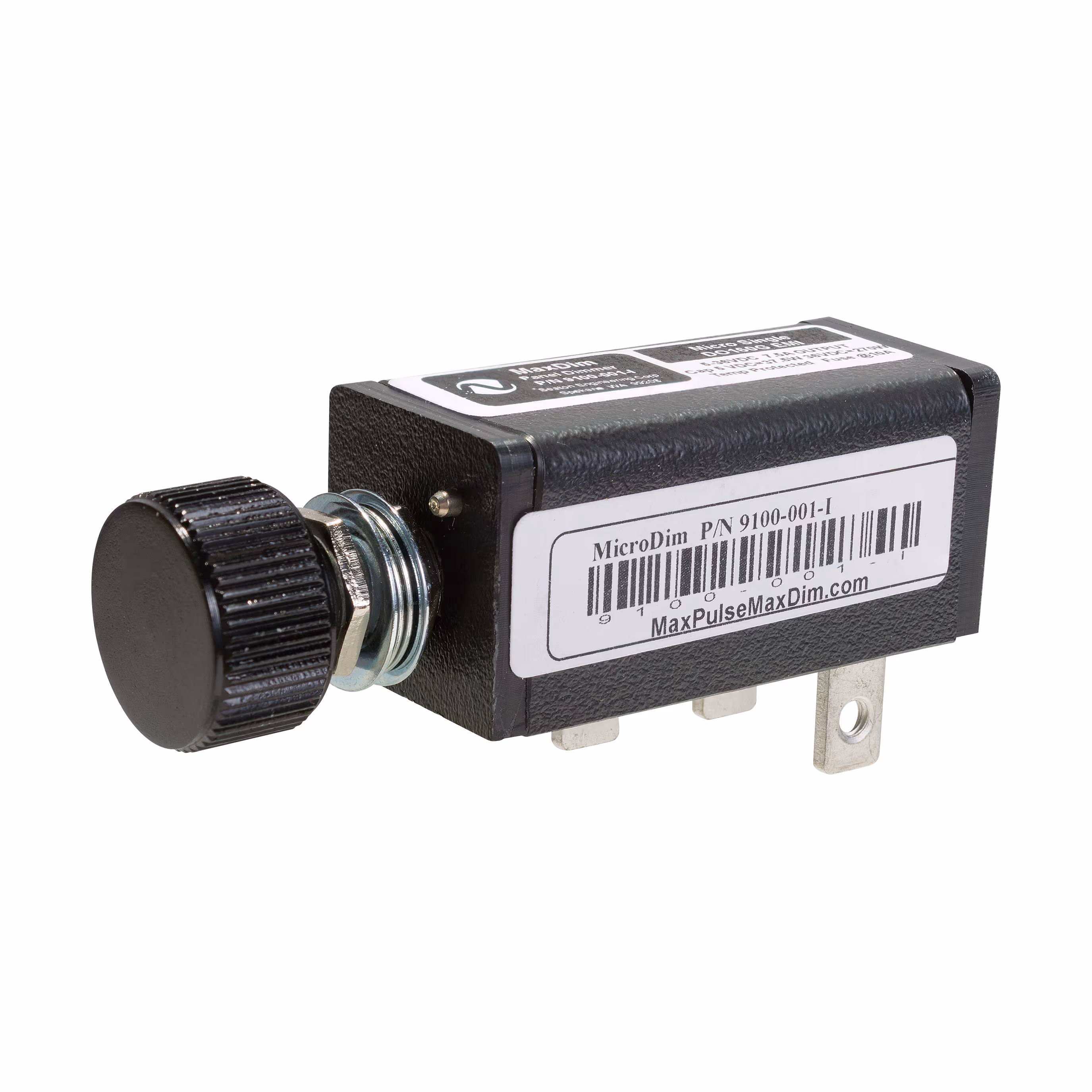

This MicroDim dimmer control unit (EDMO# 9100-I-I6) has ring terminals, a 10A max current rating, and a 6 mm bushing for panel thicknesses less than 2.2 mm. It is also optimized for incandescent lighting.

Features

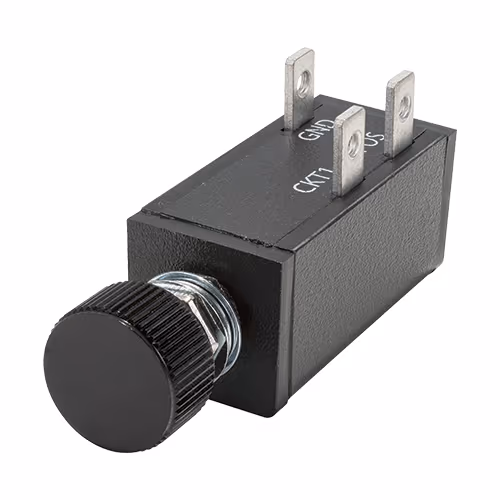

Single channel MicroDim PWM dimmer with ring terminals
Optimized for incandescent lighting
6mm bushing for panel thickness of 2.2mm or less
Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights
Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others
RTCA/DO-160G Section 21 RFE Qualified

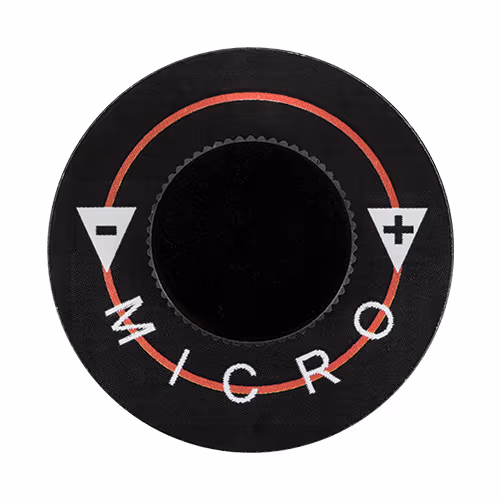

Comes with MaxDim unit, installation instructions, ring terminals, placard, installation template, and knob
Made in the USA
One year limited warranty

Specifications

Specification

Weight: 1 oz
Dimensions:

Panel label: 1.5 in, diameter Control unit: 0.9 x 0.9 x 2.66 in Bushing: 6 mm
Voltage Range:

5 VDC to 35 VDC
Max Current:

10 A
Operating Temperature:

-10°C to 70°C
Pot Rotation:

300° ± 7%
Storage Temperature:

-40 to 100°C
Maximum Internal Temperature:

+25°C at 10 A
