MicroDim Dual Dimmer Control Unit | 5-35V, 10A, Ring Terminals, LI-11 Option

SEATON ENGINEERING

Call For Pricing

Available to order

EDMO # 9100-JLI11

MFR Part # 9100-001-J OPT LI-11

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The MicroDim control unit is the perfect option for controlling lighting and instrument panels in new or existing aircraft. This fully self-contained controller works with incandescent and LED lights, pre-inverter electroluminescent strips, Nulite systems, and more without the need for separate control modules. At just over an ounce the device is very light and produces a negligible amount of heat so that heavy heat sinks are not needed.

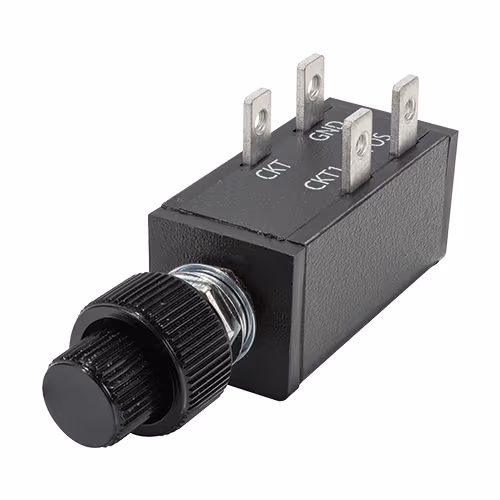

This MicroDim dual dimmer control unit (EDMO# 9100-JLI11) has ring terminals, a 10A max current rating, and an 11 mm bushing for panel thicknesses greater than 2.2 mm. One channel is optimized for incandescent lighting and the other is optimized for LED Lighting.

Features

Dual channel MicroDim PWM dimmer with ring terminals
Optimized for LED lighting on CKT1 and incandescent lighting on CKT2
11mm bushing for panel thickness greater than 2.2mm
Works excellent with all post lights, wedge lights, map lights, glare shield lighting, and cabin lights
Low level LED lighting control suitable for NVG applications
Hundreds of DC lighting control applications in aircraft, marine, rail, trucking, and others
RTCA/DO-160G Section 21 RFE Qualified

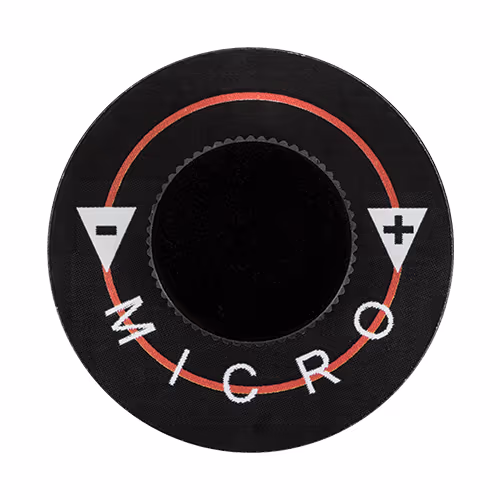

Comes with MaxDim unit, installation instructions, ring terminals, placard, installation template, and knobs
Made in the USA
One year limited warranty

Specifications

Weight:

1 oz
Dimensions:

Panel label: 1.5 in, diameter Control unit: 0.9 x 0.9 x 3.37 in Bushing: 11 mm
Voltage Range:

5 VDC to 35 VDC
Max Current:

10 A
Operating Temperature:

-10°C to 70°C
Pot Rotation:

300° ± 7%
Storage Temperature:

-40 to 100°C
Maximum Internal Temperature:

+25°C at 10 A
