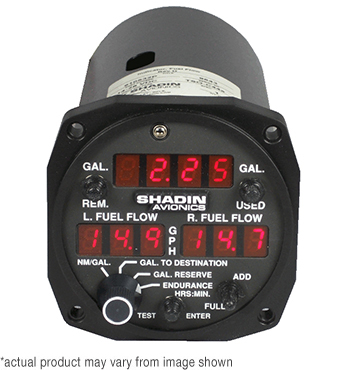

Digiflo-L Digital Fuel Management System | Single-Engine, Displays in Gallons

SHADIN LP

Call For Pricing

Available to order

EDMO # 910531P

MFR Part # 910531P

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The Digiflo-L digital fuel management system provides complete fuel management information under real flight conditions without any manual data entry once initial onboard fuel information has been entered. The Digiflo-L model is capable of connecting to supported GPS or Loran navigational units to provided additional capabilities. This unit connects to the engine's fuel flow transducer and the Loran-C or GPS receiver for navigation data to determine ground speed, distance, and estimated time en route. The Digiflo-L is capable of transmitting fuel information to the Bendix/King KLN-88, KLN-90, and Garmin GPS navigation receivers for additional calculations and display fuel management data. The unit can be installed on virtually any reciprocating or turbine engine by selecting the proper size of fuel flow transducer.

This Digiflo-L (EDMO# 910531P) unit is designed for single-engine aircrafts and displays fuel in gallons.

Features

Constant fuel flow rates
Total fuel used
Total fuel remaining
Endurance (hours/minutes)
Low fuel remaining warning
Low time remaining warning
Fuel to Destination
Fuel reserve upon reaching destination
Nautical miles per unit for fuel
Compatible GPS or Loran Navigation Receivers:
ARNAV: R15, R20, R21, R30, R40, R50, R50V, R50i, R5000, FMS5000, Star5000, FMS7000
Bendix/King: KLN-35, KLN-89B, KLN-90, KLN-90A, KLN-90B, KLN-94, KLX-135, KLN-900
BFGoodrich/Foster: F4, F14, 500, 501, 616, LNS-6000
Garmin: 100, 150, 150XL, 155, 155XL, 165, 250, 250XL, 300, 300XL GPS 400/500, GNC 420/520, GNS 430/530
Magellan: 5000
Northstar: M1 (above S/N 14800), M1A, M2, M3, 60, 600
Skyforce: (*AIM) KMD-150, Skymap II, Skymap IIIC
Trimble: 1000DC, 2000, 3000, 2100, 3100
IIMorrow/UPS Aviation Technologies/Garmin AT: Apollo 612B, 618, 618TCA, 820 GX-50/55/60/65, 360, CNX80 NMS 2001, NMC 2001

Specifications

Weight:

20 oz
Dimensions:

3.125 x 6.5 in
Mounting:

Instrument panel
Input Voltage:

12V - 28V
Input Current:

0.2A @ 14 VDC to 28 VDC
Electrical Interface:

RS-232, RS-422 serial data
Maximum Usable Fuel:

1,800 gallons 6,822 liters 9,999 lb 5,484 Kg @ 0.805 Kg/lit
Maximum Altitude:

40,000 ft
Operating Temperature:

-30° to 50°C
Humidity:

up to 95% @ 32°C
Accuracy:

±1%
Ground Speed Range:

27 - 600 knots
Functions:

Fuel Flow (selectable endurance warning) Fuel Used Fuel Remaining Full Fuel Add Fuel Endurance NM/GAL, NM/10LB, or NM/5LIT Fuel to destination Fuel Reserve
Certification:

TSO-C44a
