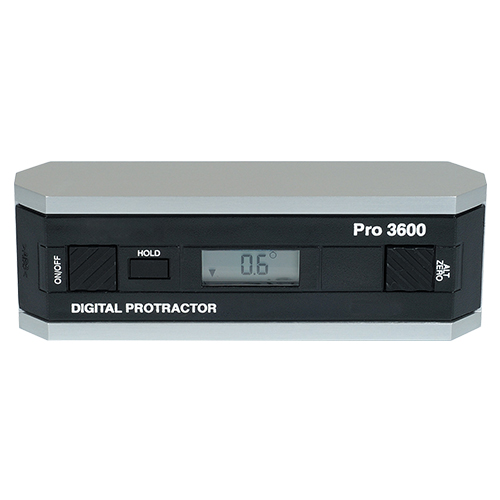

PRO-3600 Digital Protractor

EDMO DISTRIBUTORS, INC

Call For Pricing

Available to order

EDMO # 950-318

MFR Part # 950-318

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The PRO 3600 Digital Protractor is a revolutionary measuring tool that provides an immediate, digital reading of all angles in a 360° range. The precision machined aluminum frame provides a rigid, lightweight, ultra-precise platform for extremely accurate measurements. This frame is grooved along the bottom surface to facilitate use with round objects such as pipes or shafts and incorporates threaded holes on the bottom for rigid attachment if desired. The front panel buttons can be used to capture desired readings or to designate an alternate reference surface from which subsequent angles are then measured. This unit can be easily recalibrated in the field to factory accuracy using any available flat surface. It operates for up to 500 hours on a single 9V battery, incorporates an automatic power down feature (which can be disabled), and is supplied as standard with a rigid plastic case for protection.

Features

Measures over full 360° range
Standard reference = 0.00°
"ALT ZERO" button for differential readings
"HOLD" button to freeze reading
Simple user re-calibration procedure to restore factory accuracy
RS232 Interface for data-logging or remote operation
Automatic shutdown for power save (can be disabled)

Specifications

Weight:

295 g
Dimensions:

6.0 x 1.9 x 1.2 in (152.8 x 48.3 x 30.9 mm)
Range:

360º
Resolution:

0.01º (± 10º from level) 0.1º (Rest of range)
Accuracy:

± 0.05º (± 10º from level) ± 0.1º (± 10º from plumb) ± 0.2º (Rest of range)
Repeatability:

± 0.05º
Time Constant:

0.4 sec
Power:

9V PP3 Battery
Serial Port:

Protocol: RS232 Voltage: 5V Baud Rate: 9600 Output Impedance: 10KΩ Connector: 10 Pin Regular
Operating Temperature:

5 ºC to 50ºC
Storage Temperature:

-20 ºC to 65 ºC
