ELT 4000S | Portable Survival ELT, Boeing
ACR ELECTRONICS / ARTEX
EDMO#: A3-0631681
MFR#: A3-06-3168-1
Description

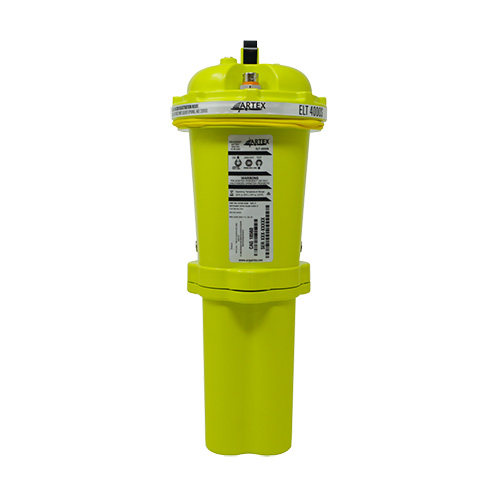

The ARTEX ELT 4000S is a portable Survival(S) ELT that transmits on 121.5 and 406 MHz that is exempt from TSO C142/DO-227 approval due to the innovative alkaline battery powered system. The ELT transmitter is based on the ARTEX ELT 4000 system and represents the latest ELT transmitter technology with a Lithium-free battery in a survival beacon saving operators in hazmat shipping fees. The ARTEX ELT 4000S is buoyant and automatically activates when deployed in water. A manual activation switch is also included for land use. An internal GPS (GNSS) will acquire position data for inclusion in the 406 MHz transmission, and a lanyard allows for attachment to a life raft.
Version (EMDO# A3-0631681) is compatible with Boeing aircraft.
Features
- Rugged design with built-in buoyancy (no float collar)
- Integrated GPS
- Alkaline battery (exempt from TSO C142/DO-227 approval)
- Five-year user replaceable alkaline battery system (on wing)
- Special Condition exempt, no Hazmat shipping
- Simple bracket for easy one-handed deployment
- Compatible with existing ARTEX handheld programmers
- Left and right-handed bracket configurations available
Specifications
Weight:
7.7 lbs
Dimensions:
6.2 x 5.42 x 14.7 inches
Battery:
5 year alkaline
Operating frequencies:
406.031 MHz (+/- 1kHz) / 121.5 MHz (+/- 0.005%)
Emission Designators:
16KOG1D (406.031 MHz) / A3X (121.5 MHz)
Output Power:
406 MHz: EIRP 5 W (37 dBm) for 24 hours @ -20°C to +55°C / 121.5 MHz: EIRP min 100mW (min 20 dBm) for 50 hours @ -20°C to +55°C
Product Codes
Mfr Part No :
A3-06-3168-1
