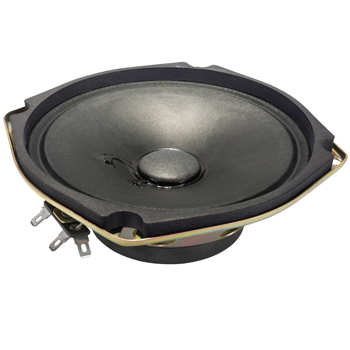

AIRCRAFT SPEAKERS/5.25 pin cushion speaker, 100Hz-10KHz, 12 watt, 3.2 Ohms.

AIRCRAFT SPEAKERS/5.25 pin cushion speaker, 100-10Hz, 12 watt, 3.2 Ohms.

MISCO SPEAKERS

EDMO#: A52FC-I

MFR#: A52FC-I

Call for Pricing

In Stock

Also Purchased

Description

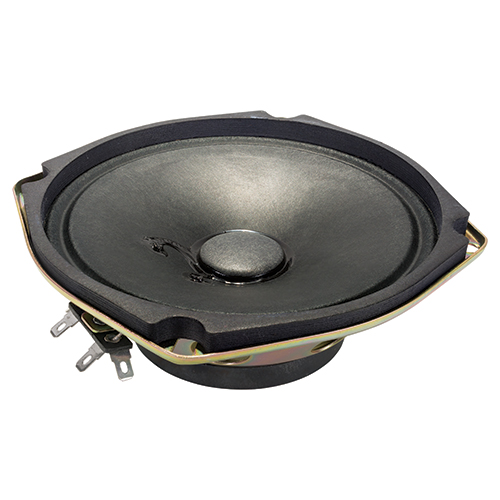

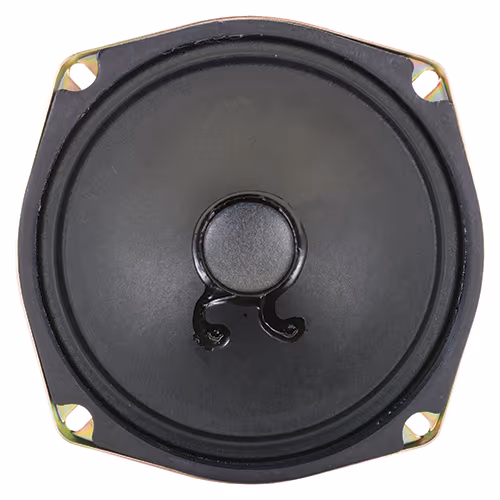

The A52FC aviation speaker delivers high-quality audio and built to be a replacement speaker in commercial and general aircraft. This speaker features a 5.25-inch diameter, a wide frequency range, and a flame-retardant treated paper cone. Its space-saving design allows for installations in tight enclosures, and will provide excellent voice clarity and performance under stringent altitudes and temperatures.

Features

  • Designed for aerospace applications
  • Wide range speaker
  • 5.25-inch (133 mm) steel basket
  • 12-watt handling power
  • 4Ω impedance
  • 90 dB SPL sensitivity
  • Ferrite magnet & flame retardant cone

Specifications

Net Weight:
0.52 kg

Application:
aerospace

Nominal Size:
5 in (127 mm)

Rated Impedance:
4Ω

Sensitivity:
90 dB SPL

Frequency Range:
80 Hz — 10,000 Hz

Resonant Frequency (Fs):
100 Hz

RoHS Compliant:
no

Program Power:
24-watt

Basket Material:
stamped steel

Terminal Size:
5.2 x 0.5 mm

Voice Coil Diameter:
25.4 mm

Voice Coil Wire Material:
copper

Voice Coil Former Material:
kapton

Magnet Material:
Ferrite

Magnet Weight:
136.08 gm

Cone Body Material:
Flame Retardant Paper

Dust Cap Material:
Flame Retardant Paper

Product Codes

Mfr Part No :

A52FC-I

ECCN :

EAR99

SCHEDULE B CODE :

8518.21.0000
