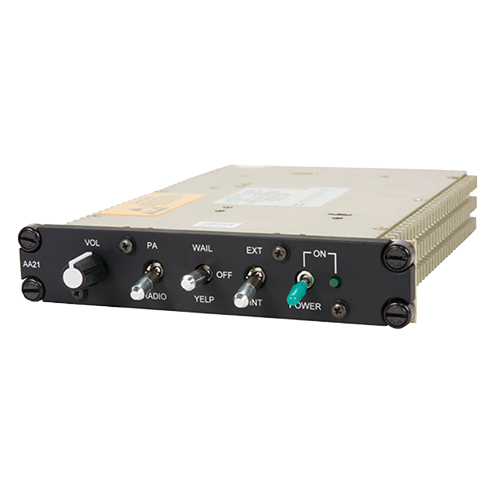

AA21 PA/Loudspeaker Controller | NVIS Green A Lighting

ANODYNE ELECTRONICS MFG (AEM)

Call For Pricing

Available to order

EDMO # AA21-405

MFR Part # AA21-405

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AA21-400 cabin PA controller provides centralized control of an aircraft’s internal and external PA system. This audio controller interfaces with all audio systems and keylines that are aboard the aircraft. It includes an integrated 25 watt amplifier which can drive a single 8Ω speaker, as well as a low level output connect to a remote mounted amplifier such as a LS/LSA series speaker/amplifier.

This AA21 loudspeaker controller (EDMO# AA21-405) features 5V NVIS Green A lighting.

Features

Compatible with LS and LSA series loud speaker system
Provides control of aircraft’s internal and external PA systems
integrated 25 watt amplifier designed to drive one 8Ω speaker
Provides a low level audio signal to drive a remote mounted amplifier
Sends wail and yelp siren audio to the low level output
“+3 dB” function allows the output level to vary by3 dB when the input is grounded
Thermal protection protects the unit during extended, high power operating conditions

Specifications

Weight:

1.40 lb (0.64 kg)
Dimensions:

1.11 x 6.53 x 5.75 in (28.1 x 165.9 x 146.1), max.
Faceplate:

engraved acrylic edge lit panel with 28 Vdc backlighting.
Mounting:

standard Dzus mounting
Material/Finish:

Chassis & cover: 5052-H32 brushed aluminum with chromate conversion finish
Heat Sink:

de-burred 6063-T6 aluminum with chromate conversion finish
Connector:

Male filtered 25 pin D-subminiature with Positronics V5 locking tabs
Temperature:

-30°C to 55°C (operating) -55°C to 85°C (survival)
Humidity:

>95%
Altitude:

25,000 ft
Certifications:

DO-160D Env. Cat. B4-BAB[(SBM)(UF)]XXXXXXZBABB[TTX]MXXXX TSO Compliance TSO-C50c, RTCA DO170 Class II (Applicable to units Serial # 1200 and up)
