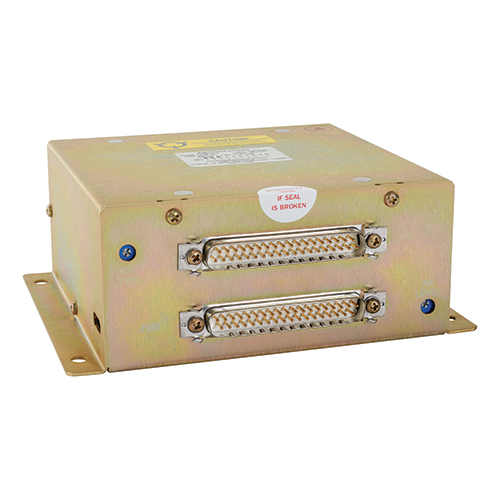

AA38-505 Local ICS Loop | 4 Place, Hi Z

AA38-505 Local ICS Loop | 4 Place, Hi Z

CANYON AEROCONNECT

Call For Pricing
Available to order
EDMO # AA38-505
MFR Part # AA38-505
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AA38 Series Aircraft Intercom System Local ICS Loop provides intercom functions with operation in Live, VOX, or PTT modes. The units are bulkhead mounted containing all the circuitry required to support a wide variety of ICS Loop applications, particularly isolation/ICS amplifier use, where the output is required to be headset or line level. A switch-selectable NAT/Andrea allows connections to larger audio systems, and an auxiliary input allows for audio input from an audio panel or transceiver.

Version AA38-505 has functions for 4 users with high impedance headsets and 150Ω dynamic mic.

Features

  • Hi Z local ICS loop – four place intercom
  • 4- MIC inputs – 0.250 mV / 5Ω
  • 1-ICS tie lines – 1.6 kΩ (NAT) or 250Ω (Andrea)
  • 1-AUX inputs – 1kΩ
  • 4 headset outputs 100 mW @ 8 or 600Ω
  • Balanced output for high common mode noise rejection
  • LIVE, VOX or PTT operation

Specifications

  • Weight:
    1.14 lb
  • Dimensions:
    5.91 x 4.88 x 1.18 in.
  • Mounting:
    Bulkhead mount with four 10-32 screws
  • Material/finish:
    5052-H32 brushed aluminum with conversion coating finish
  • Connectors:
    Filtered male 37-pin D-subminiature connector with V5 locking tabs
  • Temperature:
    -55ºC to 85ºC
  • Altitude:
    35,000 ft
  • Input voltage:
    24.8 to 30.3 VDC

Related Products

Product Codes

  • Mfr Part No
    AA38-505
  • ECCN
    7A994
  • SCHEDULE B CODE
    8518.40.20.00
