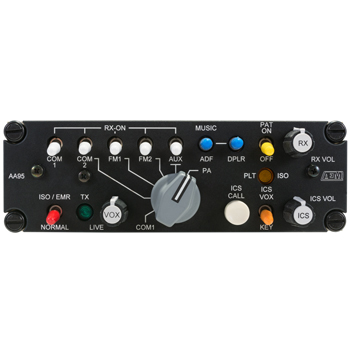

AA95-729 Single Channel Audio Controller | EMS Crew

Product Description

The AA95-729 Single Channel Audio Controller provides control over all audio in an aircraft while allows pilots and crew to select between transmitted and received audio for transmit and receive audio, LIVE, KEYED, or VOX intercom, interface for a hand mic, and pilot isolation/emergency operations. A single rotary switch switches the transmit and PA functions. Received audio volume is individually adjusted with rotary controls and the sidetone level is adjustable internally.

Specifications

• Weight:
  2.1 lb (955 g)
• Dimensions:
  1.9 x 6.82 x 5 in (48.3 x 173.2 x 127 mm)
• Mounting:
  Dzus rail
• Faceplate:
  Engraved acrylic edge lit panel
• Material/Finish:
  Chassis & cover are 5050-H32 brushed aluminum with conversion coating finish
• Connectors:
  Male 50 pin & 37 pin D-submin connectors with slide locks
• Temperature:
  -20°C to 55°C, ambient -55°C to 85°C, survival
• Humidity:
  95%, non-condensing
• Altitude:
  25,000 ft, max.
• Input Power:
  Nominal: 27.5 VDC (nominal) 0.50A max. Lighting: 27.5 VDC @ 160 mA, max. Alert Power: 27.5 VDC (nominal), 150 mA, max.

Product Codes

• Mfr Part No
  AA95-729
• SCHEDULE B CODE
  8518.40.2000

Documentation

• AA9x Service Manual
