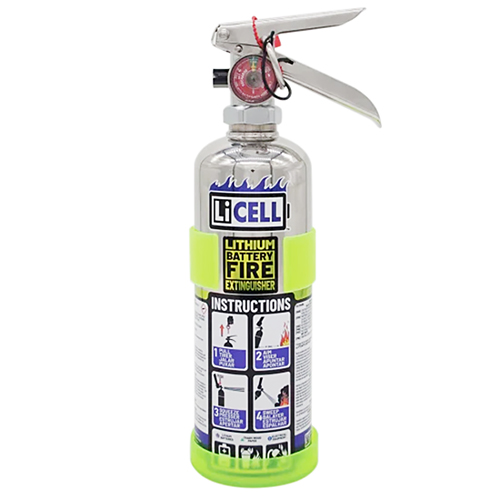

AH Series Handheld AVD Fire Extinguisher | 1 Liter, Stainless Steel, Refillable

Product Description

The AH series handheld fire extinguishers are designed for portable lithium battery fire protection by using an aqueous vermiculite dispersion (AVD) for highly effective fire suppression in extreme temperatures and thermal runaway challenges associated with lithium battery and metal fires. AVD is a natural, mineral-based and environmentally safe extinguishing agent formulated from an advanced chemically and physically inert vermiculite platelets and water.


This LiCELL handheld AVD fire extinguisher (EDMO# AH001) has an agent volume of 1 liter, and a discharge time of 25 seconds.

Specifications

• Tare Weight:
  2.9 lb (1.32 kg) Gross Weight: 5.4 lb (2.45 kg) Dimensions: 13.3 x 5.7 in (340 x 145 mm) Cylinder Diameter: 3.5 in (90 nm) Tare Weight: 2.9 lb (1.32 kg) Gross Weight: 5.4 lb (2.45 kg) Dimensions: 13.3 x 5.7 in (340 x 145 mm) Cylinder Diameter: 3.5 in (90 nm) Agent: Aqueous Vermiculite Dispersion (AVD) Agent Volume: 0.26 gal (1 L) Operating Pressure: 195 PSI (14.5 bar) Propellant: nitrogen Operating Temperature: 40°F to 140°F (5°C to 60°C) Discharge Time: 25 seconds Discharger Range: 2.0 meters UN Number: 1044 Fire Extinguisher Hazardous Weight: 1.12 kg SDS Number: 123-679 Aqueous Vermiculite Dispersion (AVD) Agent Volume: 0.26 gal (1 L) Operating Pressure: 195 PSI (14.5 bar) Propellant: nitrogen Operating Temperature: 40°F to 140°F (5°C to 60°C) Discharge Time: 25 seconds Discharge Range: 2.0 meters UN Number: 1044 Fire Extinguisher Hazardous Weight: 1.12 kg SDS Number: 123-679

Product Codes

• Mfr Part No
  AH001
• SCHEDULE B CODE
  8424.10.0000
