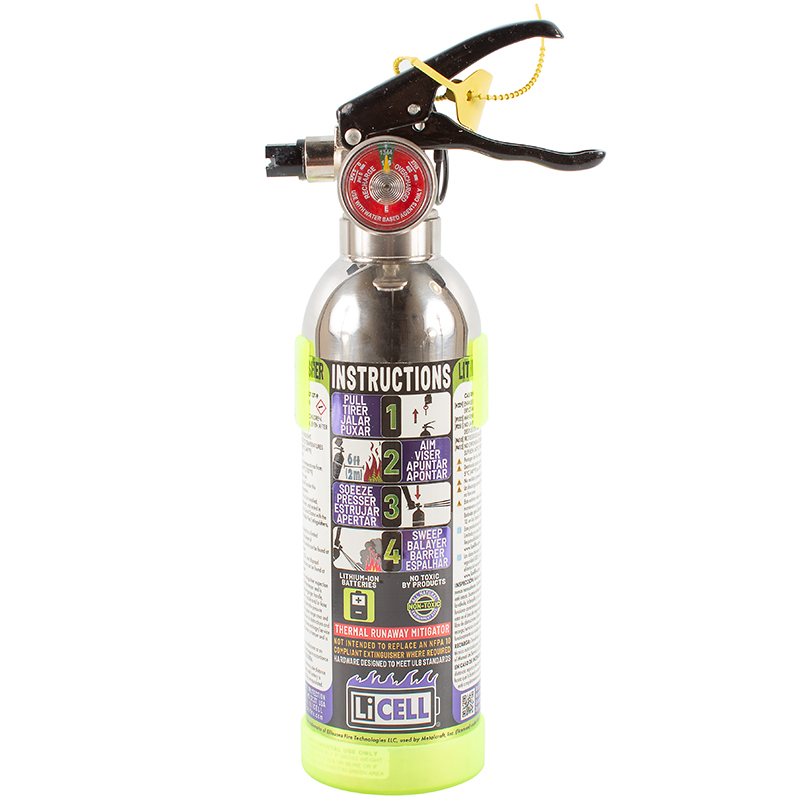

AH Series Handheld AVD Fire Extinguisher | 0.5 Liter, Stainless Steel, Refillable

Product Description

The AH series handheld fire extinguishers are designed for portable lithium battery fire protection by using an aqueous vermiculite dispersion (AVD) for highly effective fire suppression in extreme temperatures and thermal runaway challenges associated with lithium battery and metal fires. AVD is a natural, mineral-based and environmentally safe extinguishing agent formulated from an advanced chemically and physically inert vermiculite platelets and water.

This LiCELL handheld AVD fire extinguisher (EDMO# AH500) has an agent volume of 0.5 liter.

Specifications

• Tare Weight:
  0.93 kg (2.1 lb)
• Gross Weight:
  1.46 kg (3.2 lb)
• Dimensions:
  11.5 x 5.5 in (292 x 140 mm)
• Cylinder Diameter:
  2.75 in (70 mm)
• Agent:
  Aqueous Vermiculite Dispersion (AVD)
• Agent Volume:
  0.13 gal (500 mL)
• Operating Pressure:
  195 PSI (13.4 bar)
• Propellant:
  nitrogen
• Operating Temperature:
  40°F to 140°F (5°C to 60°C)
• Discharge Time:
  13 seconds
• Discharge Range:
  6.6 ft (2.0 meters)
• UN Number:
  1044 Fire Extinguisher
• Hazardous Weight:
  1.2 lb (0.56 kg)
• SDS Number:
  L123-0679

Product Codes

• Mfr Part No
  AH500
• SCHEDULE B CODE
  9999.99.9999
