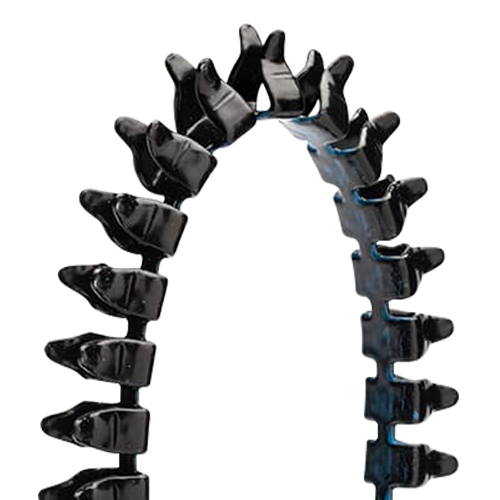

AP Series Spring-Fast Grommet Edging | 0.025 in Panel Thickness, 100 ft Reel

DEVICE TECHNOLOGIES

Call For Pricing

Available to order

EDMO # AP00100RR

MFR Part # AP0-0100-RR00

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Spring-Fast provides 49% cost savings, 950% productivity increase and best in class high performance. The fastest, safest, most reliable way to protect wires, cables, and tubing from abrasion. It locks on with finger pressure in seconds, eliminating solvents, adhesives, ancillary materials and volatile organic compound (VOCs). Spring-Fast installs continuously and is very flexible for use on sharp corners and curved edges, such as flanged holes.

This Spring-Fast grommet edging (EDMO# AP00100RR) is part of the AP series. It accepts a 0.025-inch panel thickness and comes on a 100-foot reel.

Features

Greater gripping strength for severe shock and vibration environments
Operating temperature range: -40ºF to 285ºF (-40ºC to 140ºC)
Multi-axis flexibility for rounded inside and outside corners
Nylon encapsulated stainless steel substrate with a sacrificial cushion for added protection
Snaps on fast with finger pressure
Installs continuously with two axis conformity, including right angled corners
Self locking with strong retention – no adhesives
Simpler install: no adhesive, fixturing, curing, clean up or OSHA concerns
Maintenance is far easier due to its ease of application, use and removal
Customization available (lengths, colors and print)

Specifications

Panel Thickness:

0.020 – 0.030 in (0.5 – 0.8mm), 24 – 21 Gauge
Width:

0.13 in (3.3mm)
Axis Conformity:

Multi
Vicat Softening Point per ASTM D01525 Rate B:

Substrate Finish: ISO306 356ºF (180ºC)
Operating Temperature:

-40ºF to 285ºF (-40ºC to 140ºC)
Dielectric Strength:

1000 V
Substrate:

Stainless Steel
Taber Abrasion Resistance:

Nylon per NFT 30-015
Salt Spray:

2000 Hours
Immersion:

Per NASM22529 and Skydol Compatible
Random Shock and Vibration:

MIL-STD-1344
Flammability:

UL94 V-0 (File No. E113553 NZMT2) MIL-STD-202F FAR 25.853A Telcordia GR-63-CORE
