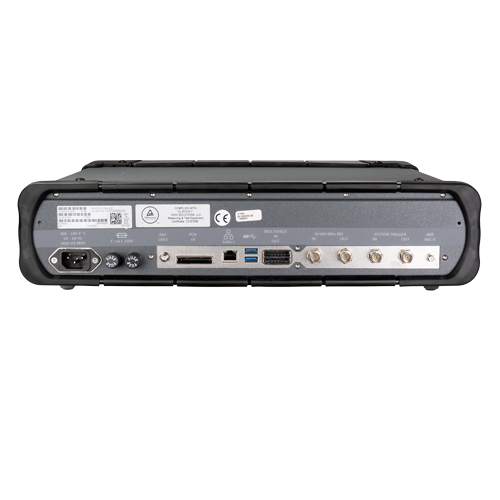

ATB-7300NG Avionics NAV Bench Test Set


VIAVI

Call For Pricing
Available to order
EDMO # ATB-7300NG
MFR Part # 142759
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The ATB-7300NG is a bench top signal generator for OEMs and MRO Return-to-Service for confirming VHF, ILS LOC and GS, VOR, ADF and Marker Beacon performance. The ATB-7300NG Navigation Test Set is based on the new VIAVI AXIe Avionics Test Bench (ATB) platform. The ATB platform is a powerful leading-edge design tailored for end-users from OEMs to repair shops and can be used for all stages of the avionics lifecycle: Product development; Design verification & validation; Certification; Manufacturing; Return-to-service; and Service/calibration.

Features

  • Legacy command set compatibility for NAV-2000R, ATN-7300 and the Collins 479S-6A
  • Ethernet remote control interface
  • VHF Generator provides control of modulation frequency, modulation depth (up to 3 sources), SELCAL tones, frequency and tone sequences
  • ILS/Localizer Generator provides control of 90 Hz and 150 Hz tone frequencies, modulation depths, left/right DDM and IDENT settings, including Morse code
  • ILS Glide Slope Generator provides control of 90 Hz and 150 Hz tone frequencies, modulation depths, up/down DDM
  • VOR Generator provides control of 30 Hz Var/Ref and 9960 Hz tone frequencies, modulation depths, 9960 Hz deviation, VOR bearing, to/from and IDENT settings
  • ADF Generator provides control of modulation frequency, modulation depth and IDENT settings
  • Marker/Beacon Generator provides selection of Outer, Middle and Inner marker beacon tones and control of tone frequencies, modulation depth and IDENT settings
  • Basic Graphical User Interface (GUI) allows access to test features

Specifications

  • Weight:
    23.1 lb
  • Dimensions:
    17.008 x 17.126 x 3.46 in. (432 x 435 x 88 mm)
  • Operating Temperature:
    0° - 50° C
  • Storage Temperature:
    -40° - 71° C
  • Humidity:
    95% to 40° C (in accordance with MIL-PRF-28800F)
  • Altitude:
    4,600 m
  • Functional Shock:
    30 G (in accordance with MILPRF-28800F)
  • Random Vibration:
    5 Hz - 500 Hz (in accordance with MIL-PRF-28800F)
  • Ports and Connections (Front):
    RF OUTPUT - SMA female (1 total) USB 3.0 Type A (4 total) Gigabit Ethernet (1 total) DisplayPort(1 total)
  • Ports and Connections (Rear):
    1588v2 (1 total)

Product Codes

  • Mfr Part No
    142759
