AV-12 VOR/LOC/GS Antenna | 108-118 MHz & 328-336 MHz

Product Description

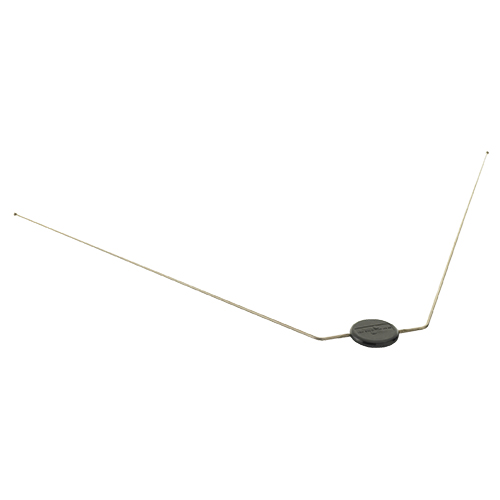

The AV-12 is a VOR/LOC/GS receive only antenna which uses a highly efficient technique of molding the elements directly into a high-impact thermo-setting bakelite center insulator. The stainless steel elements are ground to close tolerances to provide a low profile. The antenna is designed to operate at both UHF and VHF frequencies, speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.92 lb @ 250 mph.

Specifications

• Weight:
  5.5 oz
• Width Across Tips:
  29.5 in
• Application:
  VOR/LOC/GS Receive Only
• Frequency:
  108–118 MHz, 328–336 MHz
• Impedance:
  50 Ohms Nominal
• VSWR:
  2.2:1 Maximum
• Polarization:
  Horizontal
• Pattern:
  Omni-Directional
• Connector:
  Threaded studs to accept transmission line assembly with integral balun transformer (not included)
• FAA TSO:
  C40c

Product Codes

• Mfr Part No
  AV-12
• ECCN
  9A991
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C40c

Documentation

• RAMI Limited Lifetime Warranty
