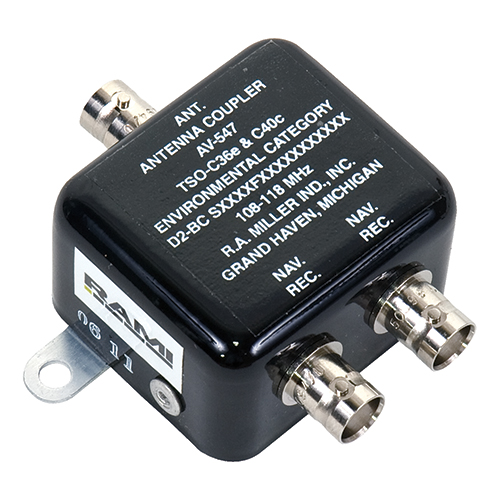

AV-547 Splitter | VOR/LOC Receive Only

AV-547 Splitter | VOR/LOC Receive Only

RAMI

Call For Pricing
Available to order
EDMO # AV-547
MFR Part # AV-547
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The AV-547 splitter feeds two navigation receivers from one antenna. The matching circuitry is enclosed in a durable, lightweight aluminum housing for superior mechanical and environmental stability. The splitter operates at altitudes of up to 50,000 ft. This product is a direct replacement for the CI 502.

Features

  • Direct replacement for the CI 502
  • Aluminum housing
  • 108-118 MHz frequency range
  • Backed by the RAMI Limited Lifetime Warranty

Also Purchased

Specifications

  • Application
    : VOR/LOC (Receive Only)
  • Frequency
    : 108–118 MHz
  • Impedance
    : 50 Ohms Nominal
  • VSWR
    : 1.4:1 Maximum
  • Insertion Loss:
    3.5 dB Maximum
  • Isolation
    : 30 dB Minimum
  • Connectors:
    (3) BNC Female
  • RF Power Capacity:
    Receive Only
  • FAA Approvals:
    TSO-C36e, TSO-C40c

Related Products

Product Codes

  • Mfr Part No
    AV-547
  • ECCN
    7A994
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C36e,C40c
