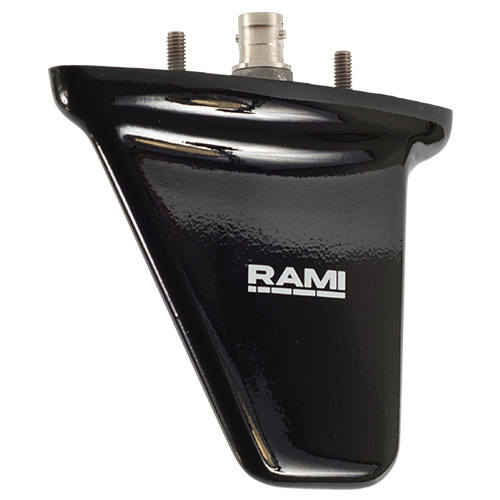

AV-74 GB DME Transponder Antenna | 960–1220 MHz, Gloss Black

Product Description

The AV-74 GB is a broadband blade type antenna for transponder or DME application. The antenna housing is constructed of an acrylonitrile-styrene-acrylic (ASA) shell. The white color allows maximum performance without losses due to color pigments or unseen dirt. The antenna is supplied with cellular neoprene mounting pad and hardware.

The AV-74 is designed to operate at speeds up to 350 mph and altitudes up to 50,000 ft. It has a drag force of 0.09 lbs @ 250 mph. This antenna is a direct replacement for the CI-105

This AV-74 GB DME transponder antenna (EDMO# AV-74 GB) has a gloss black finish.

Specifications

• Weight:
  13.6 oz
• Height:
  3.4 in
• Frequency:
  960 MHz to 1220 MHz
• Impedance:
  50 Ohms Nominal
• VSWR:
  1.5:1 Maximum
• Polarization:
  Vertical
• Pattern:
  Omni-Directional
• Connector:
  BNC (Female)
• RF Power Capacity:
  2.5 kW Peak
• Color:
  Gloss Black
• FAA Approvals:
  TSO-C66c, TSO-C74c

Product Codes

• Mfr Part No
  AV-74 GB
• SCHEDULE B CODE
  8529.10.4000

Documentation

• RAMI-Limited-Lifetime-Warranty.pdf
