Military AVX-10K Flight Line Test Set | Navigation Package

AVX10K-NAV

VIAVI

Call For Pricing
Available to order
EDMO # AVX10KNAVM
MFR Part # 22182233
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

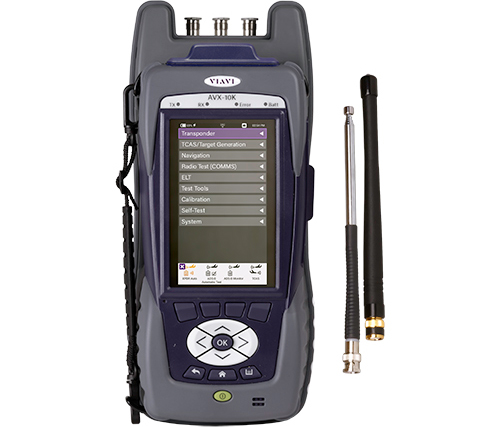

The AVX-10K is a comprehensive flight line test solution providing Maintenance Technicians with an easy-to-use all-in-one instrument for testing multiple systems. Built-in auto tests and the ability to create guided tests that replicate existing procedures will save time and provide consistent, repeatable test results.

Version (EDMO# AVX10KNAVM) includes the AVX-10K Base Unit, AC Power Adapter, Hand Strap, Operations and Quick Start Manuals, Hard Transit Carrying Case, Adapter Kit Short/Load, VOR/ILS Antenna, Marker Beacon Antenna, 6' Coax Cable, Attenuator, Software Options: DME, Navigation (ILS/MB/VOR), ELT 121.5/243/406 MHz, Radio Test AM/FM (Comms), and Secure (Wireless disabled) Mode.

Features

  • VSWR/DTF Antenna and Coax Testing
  • Cable Loss Measurements
  • TACAN and DME Interrogator Test
  • ILS (Localizer/Glideslope/Marker Beacon)
  • 121.5/243/406 MHz ELT
  • Autopilot Test
  • Guided Test
  • Replaces Multiple Test Sets: IFR4000, IFR4000AR, IFR6000, IFR6015, 3515 for Airborne COMM’s Testing including scripting capability

Specifications

  • Weight:
    6.5 lb
  • Dimensions:
    5.3 x 3.75 x 12 in.
  • Power:
    100 - 250 VAC, 1.5 A max, 47-63hz
  • Battery:
    Up to 8 hours of operation
  • Specification
    Operating Temperature: -20° to 55°C (-4° to 131°F)
