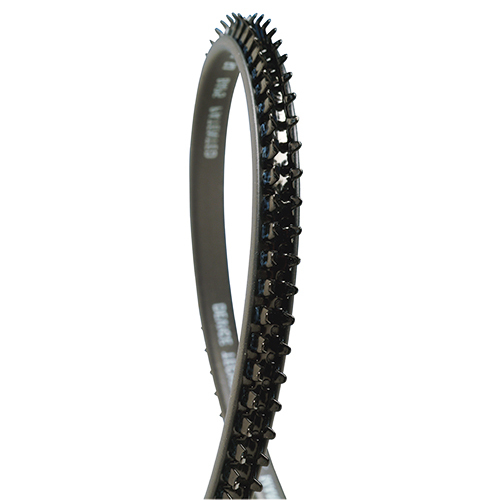

SpringFast® BAP Series Grommet Edging | Black, 25 ft Reel, 0.029–0.045 in Panel Thickness

Product Description

Spring-Fast® BAP Flexi wire protection Grommet series has greater gripping strength in severe shack and vibration environments with 4-axis flexibility. It also has a low profile while offering superior resistance to abrasion and chemicals while a soft, polymer cushion provides protection for the wires and cables.

Part (EDMO# BAP125R201) fits panels with a thickness from 0.029–0.045 in (0.7–1.1 mm).

Specifications

• Sheet Thickness:
  0.029 - 0.045 in (0.7 - 1.1 mm)
• Axis Conformity:
  4
• Vicat Softening Point per ASTM DO1525 Rate B:
  TPE Cushion: IS0306 230°F (110°C)
• Operating Temperature:
  -40°F to 185°F (-40°C to 85°C)
• Dielectric Strength:
  1,500 Volts 60 Hz per NASM22529, Section 3.2.1
• Substrate:
  Type 304 Stainless Steel
• Taber Abrasion Resistance:
  TPE Cushion: Per D1044 1 Kg load, C17 Wheel 25 mg loss 1000 cycles
• Finish:
  TPE Cushion Black Durometer 60 Shore D
• Salt Spray Hours:
  2,000 hr, ASTM B117. MIL-STD-202, Method 301
• Random Shock and Vibration:
  MIL-STD-1344, Method 2005.1 Test Condition VI, Letter J Duration 8 hours longitudinal and 8 hours perpendicular. rms G 41.7
• Flammability:
  UL94V-0 - File No. E113553 NZMT2 MIL-STD-202F, Method 111A FAR 25.853 Telcordia GR63 Core

Product Codes

• Mfr Part No
  BAP1-0025-ER0201
