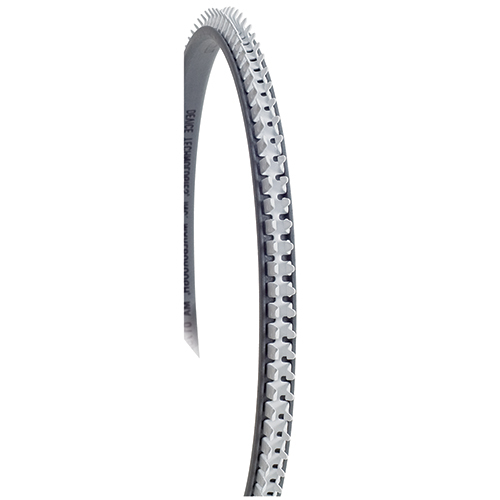

SpringFast® BAP Series Grommet Edging | White, 1.2 ft length

DEVICE TECHNOLOGIES

Call For Pricing

Available to order

EDMO # BAP508C402

MFR Part # BAP5-0008-EC0402

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

Spring-Fast® BAP Flexi Wire Protection Grommet provides greater gripping strength in severe shock and vibration environments with multi-axis flexibility. Featuring a low profile, BAP series also offers superior resistance to abrasion and chemicals while a soft, polymer cushion provides protection for the wires and cables. BAP series has a steel substrate encapsulated in a fusion bonded nylon for abrasion and chemical resistance.

Features

This BAP5 grommet edging (EDMO# BAP508C402):
Fits panels 0.089 in – 0.114 in thick
Width is 0.28 in
Features:
Provide excellent gripping strength in sever shock and vibration environments
Flexible polymer cushion adds abrasion protection
Operating temperature range from -40°F to 185°F
Multi-axis flexibility for rounded inside and outside corners
Steel substrate encapsulated with fusion bonded nylon
Snaps on easily
Multi-axis conformity allows continuous installations
Self-locking with strong retention without adhesives
Simple installation with no adhesives, curing, clean-up or OSHA requirements
Easy of application provides easy maintenance operations

Specifications

Sheet Thickness:

0.089 – 0.114 in
Axis Conformity:

4
Vicat Softening Point per ASTM DO1525 Rate B:

TPE Cushion: IS0306 230°F (110°C)
Operating Temperature:

-40°F to 185°F (-40°C to 85°C)
Dielectric Strength:

1,500 Volts (60 Hz per NASM22529, Section 3.2.1)
Substrate:

Type 304 Stainless Steel
Taber Abrasion Resistance:

TPE Cushion: Per D1044 1 Kg load, C17 Wheel 25 mg loss 1000 cycles
Salt Spray Hours:

2,000 hr, ASTM B117. MIL-STD-202, Method 301
Immersion:

Per NASM22529 and Skydol Compatible
Random Shock and Vibration:

MIL-STD-1344
Flammability

: UL94V-0 - File No. E113553 NZMT2 MIL-STD-202F, Method 111A FAR 25.853 Telcordia GR63 Core
