BT Series Spring-Fast Grommet Edging | 0.029–0.045 in Panel Thickness, Black, 25 ft Reel

Product Description

Spring-Fast provides 49% cost savings, 950% productivity increase and best in class high performance. The fastest, safest, most reliable way to protect wires, cables, and tubing from abrasion. It locks on with finger pressure in seconds, eliminating solvents, adhesives, ancillary materials and volatile organic compound (VOCs). Spring-Fast installs continuously and is very flexible for use on sharp corners and curved edges, such as flanged holes.

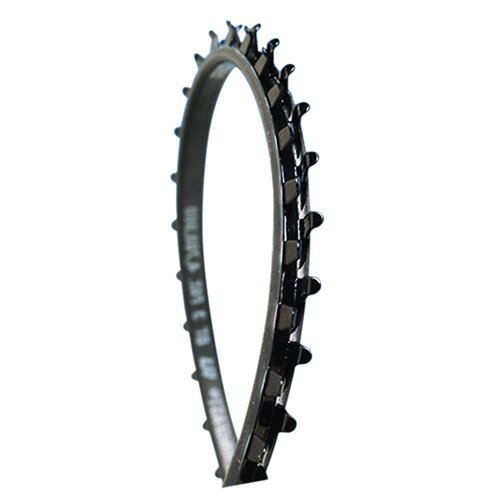

This Spring-Fast grommet edging (EDMO# BT1-0025-) is part of the BT series. It accepts a 0.029–0.045-inch panel thickness, is black in color, and comes on a 25-foot reel.

Specifications

• Panel Thickness:
  0.029–0.045 in (0.7–1.1 mm); 20–18 Gauge
• Width:
  0.19 in (4.8 mm)
• Axis Conformity:
  Single
• Vicat Softening Point per ASTM D01525 Rate B:
  TPE Cushion: ISO306 230ºF (110ºC)
• Operating Temperature:
  -40ºF to 185ºF (-40ºC to 85ºC)
• Dielectric Strength:
  1500 V
• Substrate:
  Stainless Steel
• Taber Abrasion Resistance:
  TPE Cushion per D1044
• Finish:
  TPE Cushion Black
• Salt Spray:
  2000 Hours
• Immersion:
  Per NASM22529 and Skydol Compatible
• Random Shock and Vibration:
  MIL-STD-1344
• Flammability:
  UL94 V-0 (File No. E113553 NZMT2) MIL-STD-202F FAR 25.853A Telcordia GR-63-CORE

Product Codes

• Mfr Part No
  BT1-0025-ER0201
• ECCN
  EAR99
• SAE
  AS9104
• SCHEDULE B CODE
  3926.90.9887
• UL
  UL94 V-0 Flammability Rating
