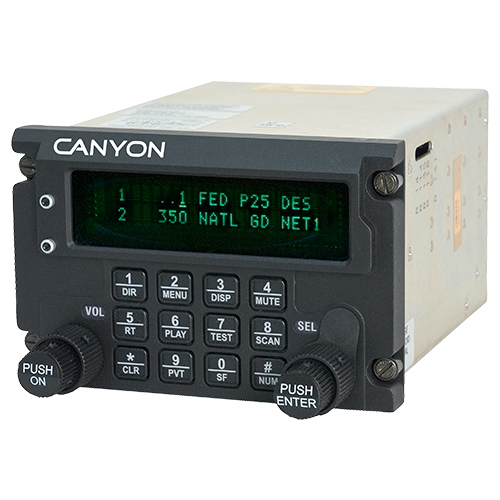

C-5000 Control Display | Black, Standard Display, P-25, Dual RT Radio Control (Serial)

Product Description

The C-5000 control display will transform your aircraft into a command and control center in the sky. It is the only system that enables users to talk on all law enforcement, military, medical, marine, SAR and public service frequencies from 29.7 MHz to 960 MHz with P-25 compliant digital communications. What's more, the C-5000 control now features an improved user interface as a result of new operational software.

This C-5000 control display (EDMO# C-5000-51) is black with a standard display, P-25 compliant, and controls two RT radios (Serial).

Specifications

• Weight:
  3 lb
• Dimensions:
  5.75 x 8.45 x 3.75 in. (overall)
• Power Requirements:
  27.5 VDC Aircraft Power (+/- 20%)
• Current Requirements:
  0.4 amps to 1.3 amps
• Temperature:
  -22°F to 140°F (-30°C to +60°C)
• Panel Lighting:
  5 VDC, 5 Vrms and 28 VDC Standard
• Display:
  Standard
• Radio Interfaces:
  RT-5000, RT-7200, RT-9600(F), RT-30, RT-138(F) RT-450, RT-406F
• Preset Channel Memory:
  350 Channels

Product Codes

• Mfr Part No
  31300-1102-1220
• PMA
  PQ2204NM
