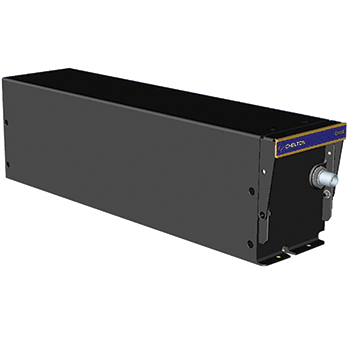

CDM-451 DME/WITH ARINC 429 DME HOLD/10mW AUDIO

CDM-451 DME/WITH ARINC 429 DME HOLD/10mW AUDIO

CANYON AEROCONNECT

Call For Pricing
Available to order
EDMO # CDM-451-1
MFR Part # 400-041181-0001
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The CDM-451 is an all digital DME. The triple channel scanning DME provides ARINC 429 outputs along with analog outputs for two displays or EFIS MFDs. The CDM-451 Transceiver is compatible with FMS Systems to include auto-tune operation. The third output channel can also provide single DME output to the FMS for independent navigation solution. The Receiver can be tuned via ARINC 429 bus using individual CVN-252 Nav Control Displays, the Wulfsberg Series III RMS 555 Radio Management System, or with Flight Management Systems.

Features:
  • Simultaneous Scanning of Three Ground Stations
  • 325 Watt Transmitter
  • Continuous Self-test
  • Increased Built-in Diagnostics
  • ARINC429 Digital Data Bus Interface
  • Analog Outputs
  • New FliteLine CVN-252 Color Control Display
  • 50% Volume and Weight Savings Compared to Series III DM-441B
  • Can Be Mounted Using Mounting Tray and Wiring from Series III DM-441B

Related Products

Product Codes

  • Mfr Part No
    400-041181-0001
  • ECCN
    7A994
  • ETSO
    2C66b
  • SCHEDULE B CODE
    8526.91.00.70
  • TSO
    C66c
