CI 120-400 VOR/LOC/GS VHF Blade Antenna Set | 108–118 MHz & 329–335 MHz, 50 Ω, BNC/Single Output Combiner

Product Description

The CI 120-400 is a four-through-hole-mount style blade VOR/LOC/GS antenna pair with BNC ports that provide a single coax cable run to the avionics location. It is suitable for mounting on the aircraft vertical stabilizer on heavy fixed-wing single-engine and multi-engine aircraft.

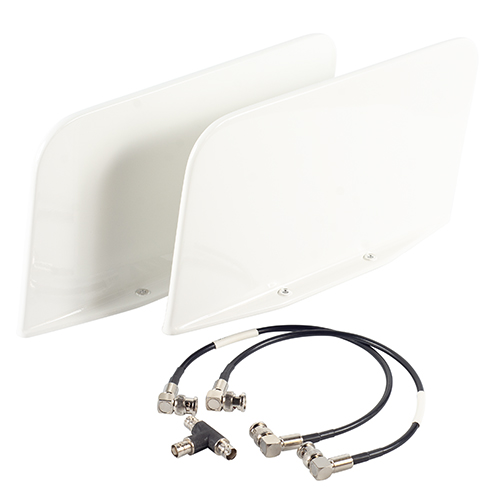

This CI 120-400 antenna set (EDMO# CI-120-400) includes two blade sensor elements each with a BNC output connector; one signal combiner to single output with BNC connectors; and coax cables.

Specifications

• Weight:
  2.8 lb
• Height:
  6.5 in
• Frequency:
  108–118 MHz (VOR/LOC) 329–335 MHz (GS)
• VSWR:
  6.0:1 108–118 MHz 5.0:1 329–335 MHz
• Polarization:
  Horizontal
• Radiation Pattern:
  Omni-Directional
• Impedance RF:
  50Ω, nominal
• Power RF:
  Receive Only
• Finish:
  Glossy White
• Connector:
  BNC/Single Output Combiner
• Temperature:
  -55°C to 85°C
• Altitude:
  50,000 ft
• FAA TSO:
  C34e, C36e, C40c
• RTCA MOPS:
  DO-192, DO-195, DO-196
• RTCA Environmental:
  DO-160D

Product Codes

• Mfr Part No
  CI-120-400
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34e,C36e,C40c
