CI 164 Marker Beacon Antenna | 75 MHz, 50 Ω, Flush Mount, BNC Connector

CI 164 Marker Beacon Antenna | 75 MHz, 50 Ω, Flush Mount, BNC Connector

COMANT INDUSTRIES

Call For Pricing
Available to order
EDMO # CI-164
MFR Part # CI-164
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

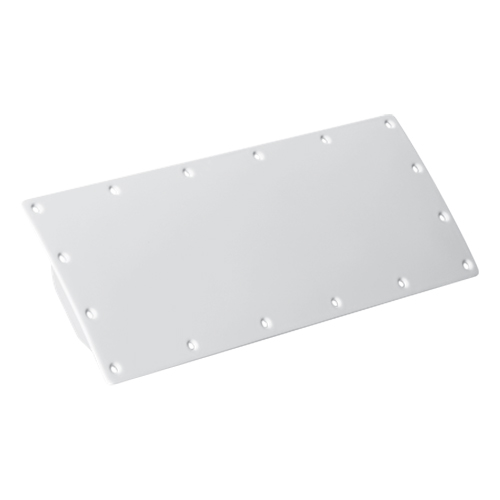

The CI 164 antenna (EDMO# CI-164) is a sixteen-through-hole-flush-mount style curved marker beacon antenna with dual BNC ports. This antenna features a 75 MHz frequency that supports high sensitivity marker beacon receivers and provides dual marker beacon signal outputs at the antenna, eliminating the need for a splitter. It is suitable for bottom mounting on business jets.

Features

  • 75 MHz frequency
  • Provides for dual marker beacon signal outputs at the antenna
  • Eliminates the need for a separate marker beacon splitter
  • Antenna is housed in an aluminum enclosure with a glass laminate cover
  • Internal components are potted in place for mechanical integrity
  • Designed for curved crown surface mounting on business jets

Specifications

  • Weight:
    1.00 lbs
  • Height:
    Flush Mount
  • Frequency:
    75 ± 0.15 MHz
  • VSWR:
    1.5:1 @ 75 MHz 5.0:1 @ 75 ± 0.15 MHz
  • Polarization:
    Horizontal
  • Isolation (Between Ports):
    20 dB
  • Impedance RF:
    50 Ω
  • Resistance DC:
    DC Grounded
  • Power RF:
    Receive Only
  • Construction:
    Aluminum Housing, Glass Laminated Cover
  • Finish:
    White Polyurethane Enamel/Housing Flat Grey
  • Connector:
    BNC (Two Ports)
  • Temperature Range:
    -55ºC to 85ºC
  • Altitude:
    45,000 ft
  • FAA TSO:
    C35d

Related Products

Product Codes

  • Mfr Part No
    CI-164
  • ECCN
    7A994
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C35d
