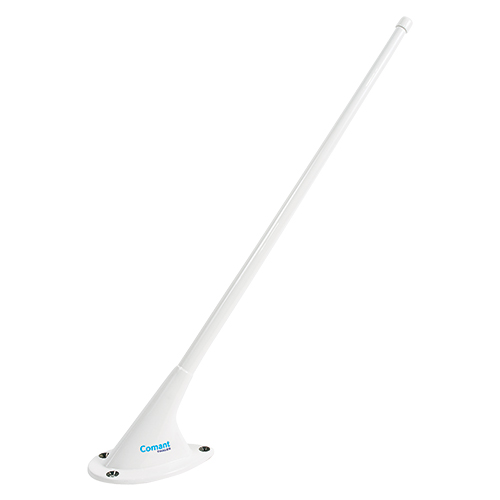

CI 177-13 FM Communication Whip Antenna | 138–174 MHz, 50 Ω, BNC Female Connector, 3-Hole

Product Description

The CI 177-13 antenna (EDMO# CI-177-13) is a three-through-hole-mount style FM communication whip antenna with a BNC port. This antenna is designed for use over the public service FM extended frequency 2-meter band and is suitable for top mounting on light fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.50 lb
• Height:
  14.5 in
• Frequency:
  138–174 MHz
• VSWR:
  3.0:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance (RF):
  50 Ω
• Resistance DC:
  Short Circuit
• Power (RF):
  50 W
• Material:
  Die Cast Housing/Fiberglass Whip
• Finish:
  White Polyurethane Enamel
• Connector:
  BNC Female
• Temperature:
  -55ºC to 55ºC
• Altitude:
  25,000 ft
• FAA TSO:
  C37b, C38b
• RTCA Environmental:
  DO-138
• Gasket:
  C29205

Product Codes

• Mfr Part No
  CI 177-13
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37b,C38b

Documentation

• CI 177-13 Data Sheet
• CI 177-13 Product Drawing
