CI 222-1 FM Communications Bent Whip Antenna | Receive-Only, 88–108 MHz, 50 Ω, BNC Female Connectors

Product Description

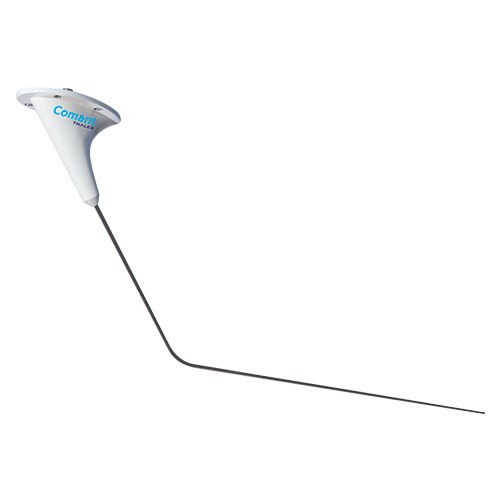

The CI 222-1 antenna (EDMO# CI-222-1) is a four-through-hole-mount style FM receive-only bare bent antenna with a BNC port. This antenna is designed for listening to FM broadcasts and is suitable for bottom mounting on light fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.50 lb
• Height:
  8.5 in
• Whip Length:
  20.0 in
• Frequency:
  88–108 MHz
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance (RF):
  50 Ω
• Power (RF):
  50 W
• Material:
  Cast Zinc Housing/Stainless Steel Whip
• Finish:
  White Polyurethane Enamel
• Connector:
  BNC Female
• Temperature:
  -55ºC to 85ºC
• Mounting Configuration:
  4 Hole
• FAA TSO:
  C37d, C38d
• Gasket:
  B12607-3

Product Codes

• Mfr Part No
  CI 222-1
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 222-1 Data Sheet
• CI 222-1 Product Drawing
