CI 259E VOR/LOC/GS V Dipole Antenna | 108–118 MHz & 329–335 MHz, 50 Ω, BNC Connectors, 2-Hole

Product Description

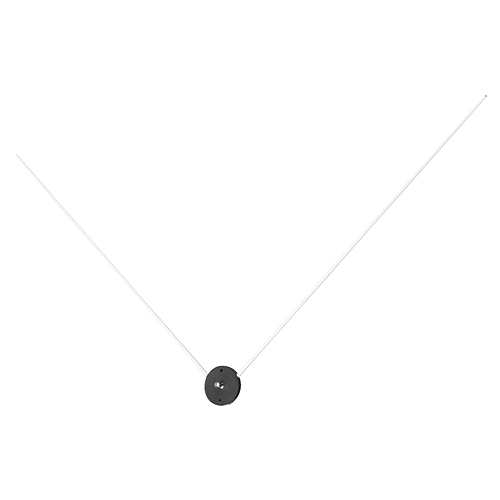

The CI 259E antenna (EDMO# CI-259-E) is a two-through-hole-mount style VOR/LOC/GS V dipole antenna with a BNC port. It features a single navigation output that can be used in conjunction with signal diplexers to achieve the desired avionics signal input. This antenna is designed with fixed radiator elements and is suitable for mounting on the vertical stabilizer or tail boom on light fixed-wing single-engine and multi-engine aircraft and helicopters.

Specifications

• Specification
  Weight: 0.35 lb
• Height:
  16 in
• Frequency:
  108–118 MHz (VOR/LOC) 329–335 MHz (GS)
• VSWR:
  3.0:1
• Polarization:
  Horizontal
• Radiation Pattern:
  Dipole
• Impedance:
  50 Ω
• Power RF:
  Receive Only
• Material:
  Delrin Housing/Polyester Glass Laminate Over Stainless Steel Radiators
• Finish:
  Black Housing/Glossy White Whips
• Connector:
  BNC
• Temperature:
  -55ºC to 85ºC
• Altitude:
  50,000 ft
• Mounting:
  Two-hole mounting pattern
• FAA TSO:
  C34c, C36c, C40a
• RTCA MOPS:
  DO-192, DO-195, DO-196
• RTCA Environmental:
  DO-160

Product Codes

• Mfr Part No
  CI 259E
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C34c,C36c,C40a

Documentation

• CI 259E Data Sheet
• CI 259E Product Drawing
