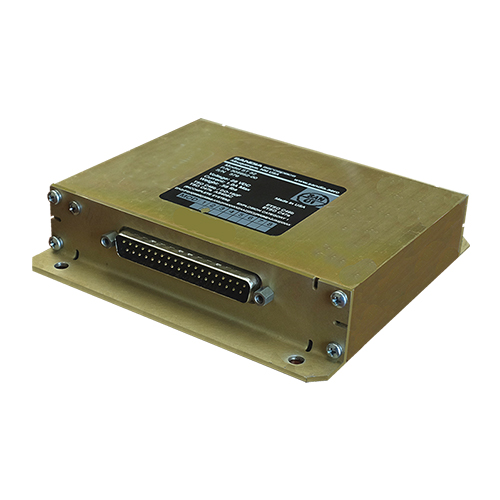

ST 32 Dual Function Signal Conditioner | Without Install Kit

Product Description

The ST 32 is a dual function signal conditioner that converts four channels of the sinusoidal output of Tach Generators and one channel of analog strain gauge pressure to a digital signal that can be used by aircraft display and/or control systems. The ST 32-01 has reverse protection diodes on pins 1 and 20 that allow the ST 32-01 to be powered from independent power buses.

This ST 32 (EDMO# 305952-00) comes without the install kit. Install kit must be purchased through Garmin.

Specifications

• Weight:
  0.62 lb
• Dimensions:
  4.8 x 4.8 x 1.0 in
• Operating Voltage:
  18–32.2 VDC
• Current:
  Less Than 1 A (Heater On), Less Than 100 mA (Heater Off)
• Operating Temperature:
  -55°C to 70°C
• Operating Altitude:
  55,000 ft

Product Codes

• Mfr Part No
  013-00337-00
• ECCN
  7A994
• SCHEDULE B CODE
  8542.31.0030
