Product Description

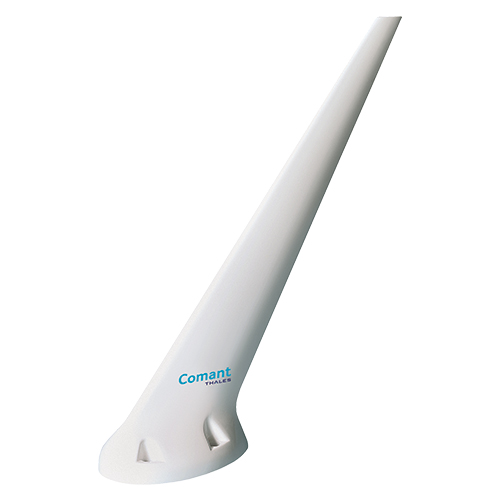

The CI 2680-200 ComDat antenna (EDMO# CI-2680200) is a four-through-hole-mount style VHF/GPS non-WAAS blade antenna with BNC and TNC ports. This antenna covers both VHF communication and GPS frequencies and is GPS C144 certified for class 1 LNAV approaches (lateral navigation only). It is designed to be used with 27 dB gain GPS panel mount systems and is suitable for top mounting with both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

Specifications

• Weight:
  1.25 lb
• Connectors:
  VHF: BNC GPS: TNC
• FAA TSO:
  C37d, C38d, C144
• RTCA Environmental:
  DO-160D
• VHF SPECIFICATIONS:
• Frequency:
  118–137 MHz
• VSWR:
  2.9:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• Power Rating:
  50 W
• GPS PREAMPLIFIER:
• Frequency:
  1575.42 ± 3 MHz
• VSWR:
  1.5:1
• Polarization:
  RHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  26.5–31.5 dB
• DC Voltage:
  4–24 VDC
• DC Current:
  25–40 mA
• Noise:
  3.8 dB

Product Codes

• Mfr Part No
  CI-2680-200
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C144,C37d,C38d

Documentation

• CI 2680-200 Data Sheet
• CI 2680-200 Product Drawing
