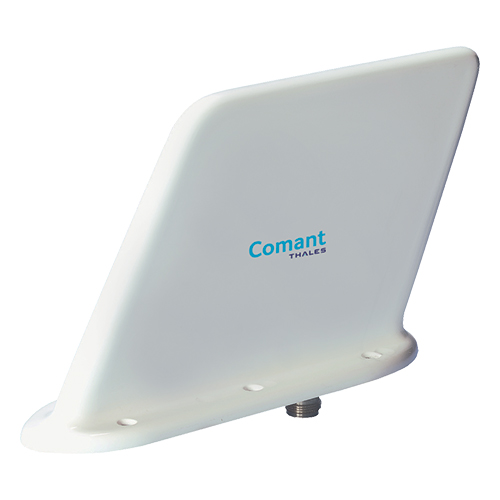

CI-285 UHF Communications Blade Antenna | 400–960 MHz, 50 Ω, N Female Connector

Product Description

The CI 285 antenna (EDMO# CI-285) is a six-through-hole-mount style UHF communications blade antenna with a BNC port. This antenna is designed to support the 400–960 MHz frequency range and is suitable for bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft.

Specifications

• Weight:
  0.75 lb
• Height:
  5.20 in
• Frequency:
  400–960 MHz
• VSWR:
  2.0:1
• Polarization:
  Vertical
• Radiation Pattern:
  Typical 1/4 wave stub
• Impedance:
  50 Ω
• RF Power:
  100 W
• Material:
  Lexan
• Finish:
  White Polyurethane Enamel
• Connector:
  N Female
• Temperature:
  -55ºC to 85ºC
• Altitude:
  55,000 ft
• RTCA Environmental:
  DO-160C

Product Codes

• Mfr Part No
  CI 285
• ECCN
  7A994
• SCHEDULE B CODE
  8529.10.4000

Documentation

• CI 285 Data Sheet
• CI 285 Product Drawing
