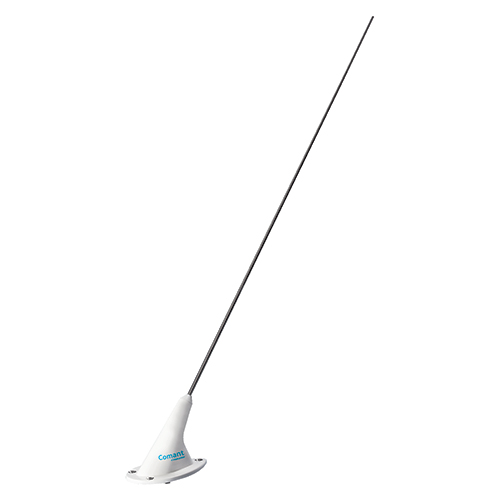

CI 292-1 VHF Communications Whip Antenna | 118–137 MHz, 50 Ω, BNC Female Connector

Product Description

The CI 292-1 antenna (EDMO# CI-292-1) is a three-through-hole-mount style VHF communications bare whip antenna with a BNC port. This antenna is equivalent to the CI 291 VHF communications whip antenna except it features a straight tapered stainless steel radiator. It is designed with a narrow mounting pattern and is suitable for top mounting on light fixed-wing single-engine and multi-engine aircraft and helicopters.

Specifications

• Weight:
  0.5 lb
• Height:
  20.0 in
• Frequency:
  118–137 MHz
• VSWR:
  2.5:1
• Polarization:
  Vertical
• Radiation Pattern:
  Omnidirectional
• Impedance RF:
  50 Ω
• Power RF:
  50 W
• Material:
  Cast Housing / Stainless Steel Whip
• Finish:
  White Polyurethane Enamel
• Connector:
  BNC Female
• Temperature:
  -55°C to 85°C
• Altitude:
  50,000 ft.
• Airspeed:
  250 KTAS
• FAA TSO:
  C37d, C38d
• RTCA Environmental:
  DO-160D
• Gasket:
  C29205 Cork Neoprene

Product Codes

• Mfr Part No
  CI 292-1
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C37d,C38d

Documentation

• CI 292-1 Data Sheet
• CI 292-1 Product Drawing
