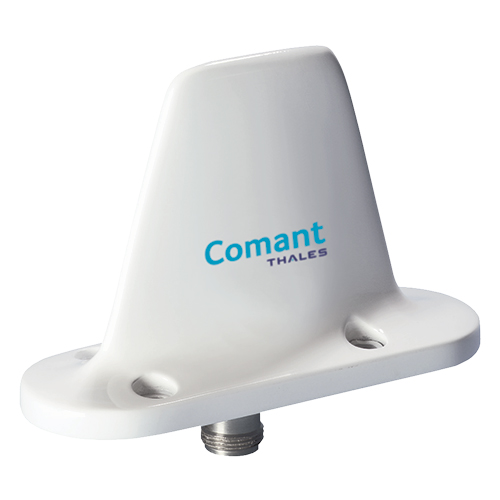

CI 310-22 UHF Radiotelephone Blade Antenna | 806–960 MHz & 1030–1090 MHz, 50 Ω, TNC Female Connector, White

Product Description

The CI 310 series ComDat antenna is a four-through-hole-mount style UHF communication/transponder blade antenna with a TNC port. This antenna is designed for 806–960 MHz (UHF) and 1030–1090 MHz (XPDR/ADS-B Out) frequency ranges and it is suitable for either top or bottom mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

This CI 310 series ComDat antenna (EDMO# CI-310-22) has a TNC Connector and a white finish.

Specifications

• Weight:
  0.32 lb
• Height:
  3.25 in
• Frequency:
  806–960 MHz & 1030–1090 MHz
• VSWR:
  1.75:1 @ 806–960 MHz 1.5:1 @1030–1090 MHz
• Polarization:
  Vertical
• Radiation Pattern:
  Equivalent to 1/4 Wave Stub
• Impedance (RF):
  50 Ω
• Power (RF):
  100 W
• Material:
  High Density Polyurethane:
• Finish:
  White Polyurethane Enamel
• Connector:
  TNC
• Temperature:
  -55ºC to 70ºC
• Altitude:
  50,000 ft
• FAA TSO:
  C74c, Class 1A
• RTCA Environmental:
  DO-160C

Product Codes

• Mfr Part No
  CI 310-22
• ECCN
  7A994
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C74a

Documentation

• CI 310 Data Sheet
• CI 310 Product Drawing
