CI 420-16 XM Weather & Radio Antenna | 2332.5–2345.0 MHz, 50 Ω, 28 dB Gain, TNC Female Connector

Product Description

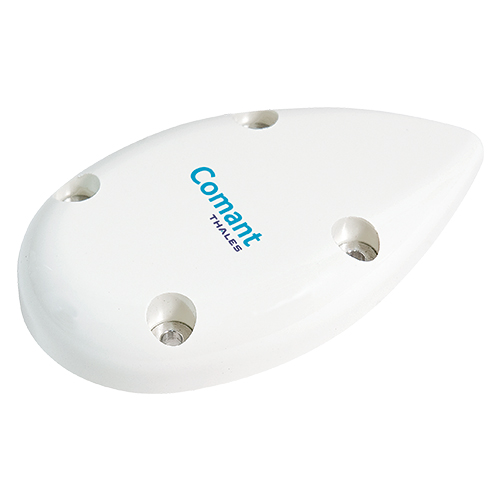

The CI 420-16 antenna (EDMO# CI-420-16) is a four-through-hole-mount style XM weather & radio teardrop antenna with a TNC port. This antenna is designed to operate with XM systems with longer coax cable runs such as Heads Up XM weather data systems. It is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

Specifications

• Weight:
  4.2 oz
• Frequency:
  2332.5–2345.0 MHz
• VSWR:
  1.5:1
• Polarization:
  LHCP
• Radiation Pattern:
  Hemispherical
• Impedance:
  50 Ω
• Gain:
  26–30 dB
• DC Voltage:
  4–5.5 VDC; 4.7 VDC (typical)
• DC Current:
  25–55 mA; 45 mA (typical)
• Noise Figure:
  2.7 dB
• Finish:
  White Polyurethane Enamel
• Connector:
  TNC Female
• RTCA Environmental:
  DO-160D

Product Codes

• Mfr Part No
  CI 420-16

Documentation

• CI 420-16 Data Sheet
• CI 420-16 Product Drawing
