CI 420-490 Iridium Satcom Teardrop Antenna | 1616.0–1626.5 MHz, 50 Ω, 3 dB, TNC Female Connector

CI 420-490 Iridium Satcom Teardrop Antenna | 1616.0–1626.5 MHz, 50 Ω, 3 dB, TNC Female Connector

COMANT INDUSTRIES

Call For Pricing
In stock
EDMO # CI-420-490
MFR Part # CI 420-490
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

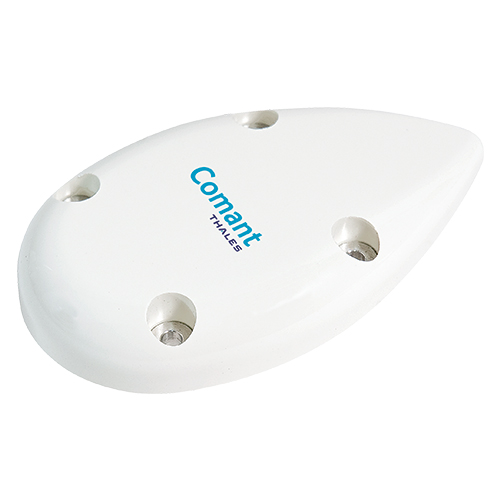

The CI 420-490 antenna (EDMO# CI-420-490) is a four-through-hole-mount style Iridium teardrop antenna with TNC ports. This antenna is Iridium C159a certified and designed for airborne Iridium based telephone, email, asset tracking or safety services. It is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

Features

  • Covers the 1616.0–1626.5 MHz Iridium frequency
  • RHCP polarization
  • Hemispherical radiation pattern
  • TNC female connector
  • For use on light and heavy fixed-wing single-engine and multi-engine aircraft and business jets
  • Not compatible with most GPS handheld receiver systems

Also Purchased

Specifications

  • Weight:
    5 oz
  • Frequency:
    1616.0–1626.5 MHz
  • VSWR:
    1.5:1
  • Polarization:
    RHCP
  • Radiation Pattern:
    Hemispherical
  • Impedance:
    50 Ω
  • Power Handling:
    6.5 W
  • Lighting Protection:
    DC Grounded
  • Gain:
    +3 dBic @ Zenith
  • Finish:
    White Polyurethane Enamel
  • Connector:
    TNC Female
  • FAA TSO:
    C159a
  • RTCA Environmental:
    DO-160G

Related Products

Product Codes

  • Mfr Part No
    CI 420-490
  • ECCN
    7A994
  • PROAPP
    PT2316NM
  • SCHEDULE B CODE
    8529.10.4000
  • TSO
    C159a
