CI 429-200 GPS WAAS Rectangle Antenna | 1575.42 MHz, 50 Ω, 27 dB Gain, TNC Female Connector

Product Description

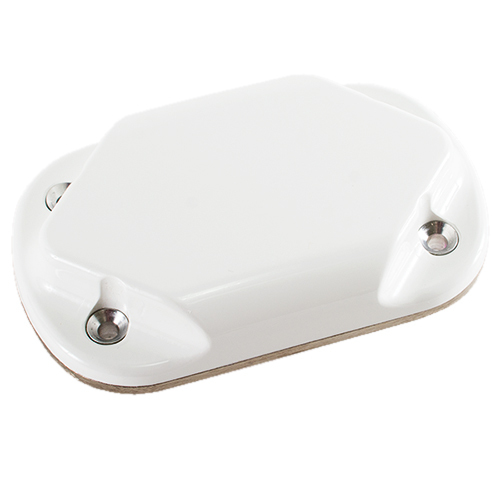

The CI 429-200 antenna (EDMO# CI-429-200) is a four-through-hole-mount style GPS WAAS rectangle antenna (ARINC 743A footprint) with TNC ports. This antenna is GPS C190 certified for class 3 LPV precision approaches and is designed to be used with 27 dB gain GPS panel mount systems. It is suitable for top mounting on both light and heavy fixed-wing single-engine and multi-engine aircraft and business jets.

Specifications

• Weight:
  7.73 oz
• Frequency:
  1575.42 ± 10.23 MHz
• VSWR:
  1.5:1
• Polarization:
  RHCP
• Radiation Pattern:
  Omnidirectional
• Impedance:
  50 Ω
• Gain:
  26.5–32.5 dB
• DC Voltage:
  4–24 VDC
• DC Current:
  40 mA (typical), 60 mA (max)
• Noise Figure:
  2.5 dB
• Stability:
  Unconditional
• Finish:
  White Polyurethane Enamel
• Connector:
  TNC Female
• FAA TSO:
  C190
• RTCA Environmental:
  DO-160E

Product Codes

• Mfr Part No
  CI 429-200
• ECCN
  7A994
• NCNR
  EXCEPT UNDER WARRANTY
• PROAPP
  PT2316NM
• SCHEDULE B CODE
  8529.10.4000
• TSO
  C190
