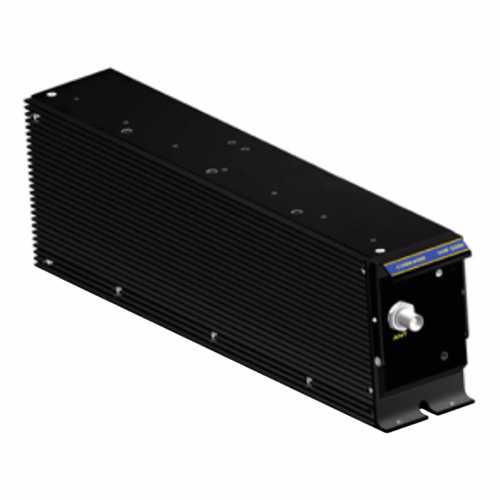

CVC-151 VHF COMM/136.975 mHz/10mW AUDIO/8.33-25kHz SWITCHED/WITH MOUNTING BAR ADAPTOR

CVC-151 VHF COMM/136.975 mHz/10mW AUDIO/8.33-25kHz SWITCHED/WITH MOUNTING BAR ADAPTOR

CANYON AEROCONNECT

Call For Pricing
Available to order
EDMO # CVC-151-14
MFR Part # 400-048100-0107
Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The FliteLine VHF Communication System is an all digital DSP VHF Transceiver, built and designed to ARINC Air Transport specifications. CVC-151 VHF Transceiver is designed to meet the latest ATC environment and all future CNS ATN requirements. The CVC-151 has provisions for VDL Mode 2 and VDL Mode 3. Our FliteLine Communication System features a 20 watt solid-state transmitter and is compliant with 25 kHz or 8.33 kHz spacing. CVC-151 Transceiver architecture is standard ARINC 429 which supports interface to FMS systems and RMS 555 Radio Management System. The CVC-151 Transceiver is totally interchangeable with current Series III VHF Coms. The result is increased customer reliability.

Features
  • 8.33 and/or 25 kHz Channel Spacing
  • FM Immunity
  • Continuous Transmit Capability (at reduced power)
  • Built-in SELCAL and ACARS Capability
  • New Color LCD CVC-152 Com Control Display
  • Or Multi-function Nav/Com CCN-955 CD
  • Increased System Self-Test and BIT
  • ARINC 429 Digital Data Bus
  • New CAN Bus Implementation
  • 118.000-136.975 MHz Standard Frequency Range
  • 118.000 -151.975 MHz Extended Frequency Range Option
  • Reduced Weight and Volume
  • Provisions for VDL Mode 2 and VDL Mode 3

Related Products

Product Codes

  • Mfr Part No
    400-048100-0107
  • ECCN
    7A994
  • ETSO
    C37e and C38e
  • SCHEDULE B CODE
    8525.50.6050
  • TSO
    C169
