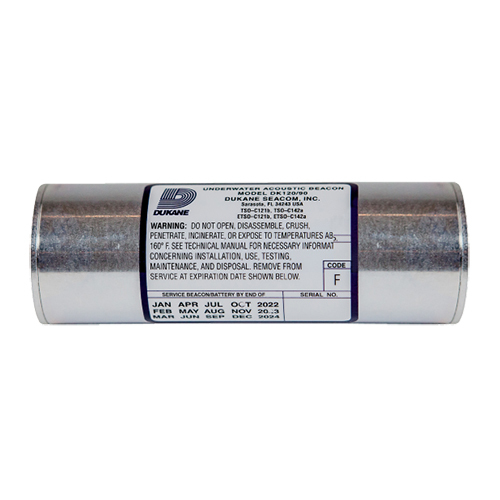

DK120-90 Underwater Acoustic Beacon
DUKANE
EDMO#: DK120-90
MFR#: DK120-90
Hazmat charges may apply
Description
The DK120/90 is a battery operated underwater acoustic pulse generator (beacon / pinger) that is activated when the water switch is immersed in either fresh or salt water. Providing a minimum of 90 days of uninterrupted operation once activated, this beacon meets or exceeds all FAA requirements. This beacon can assist in location of CVR/FDR devices.
Features
- Watertight aluminum case
- Capable of operation at depths of up to 20,000 feet
- Detectable at a range of 2000 to 4000 yards
- Sustained pressure up to 8700 psi
- Water switch actuation initiates beacon operation upon immersion in either fresh or salt water
- The battery used to power the DK120/90 will sustain beacon operation for a minimum of 90 days
- Acoustic output of 160 dB with an operating frequency of 37.5 kHz
- The water switch is part of a low current triggering circuit
- The generated pulses are approximately 10 ms in duration, and occur about once per 1 second
Specifications
Weight:
Beacon - 6.7 oz
Mount - 6 oz
Dimensions:
1.30in diameter x 3.92in length
Operating Frequency:
37.5 kHz ± 1 kHz
Operating Depth:
Surface to 20,000 feet (6096 meters)
Pulse Length:
9.0 milliseconds Minimum
Pulse Repetition Rate:
Not less than 0.9 Pulse/Sec.
Operating Life:
90 Days (Minimum)
Battery Life In Beacon:
7 Years
Acoustic Output, Initial:
1060 dynes/cm Rms. pressure at 1 meter (160.5dB)
Acoustic Output After 90 Days:
700 dynes/cm2 Rms. pressure at 1 meter (157.0dB)
Operating Temperature Range:
+28°F (-2.2°C) to +100°F (+37.8°C)
Radiation Pattern:
Rated output over 80 percent of sphere
FAA & EASA Authorized:
TSO-C121b / ETSO-C121b, TSO- C142a / ETSO-C142a
Product Codes
Mfr Part No :
DK120-90
ECCN :
6A991
END USE :
SEALDYNAMICS
ETSO :
C121b, C142a
PROAPP :
PT4200CE
SCHEDULE B CODE :
9014.80.6000
TSO :
C121b, C142a
