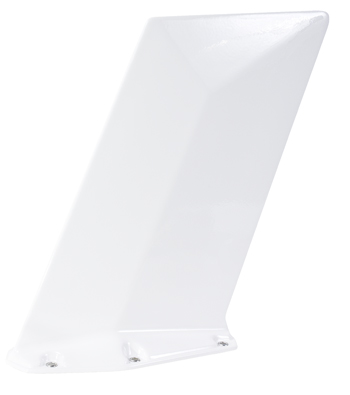

DM C60-171 VHF Blade Antenna | 116–152 MHz, BNC Male Connector

Product Description

The DM C60 series VHF antenna is a polarized, high frequency communications antenna designed to be mounted on the top or the bottom of the aircraft fuselage. The C60 series communication antennas operate on either 118 MHz – 137 MHz or 116 MHz to 152 MHz frequency range (model depending) for both sending and receiving. The electrical elements of the antenna are completely sealed by a foamed resin within an outer fiberglass housing. The rugged construction of this antenna is ideal for commercial and general aviation use.


This DM C60 VHF antenna (EDMO# DM C60-171) has a BNC male connector and operates on 116 MHz to 152 MHz frequency band.

Specifications

• Weight:
  1.6 lb
• Finish:
  white
• Connector:
  C60-1, -3, -17 (BNC male) C60-4 (N male)
• Frequency Range:
  118 MHz – 137 MHz (-1 model) 116 MHz – 152 MHz (-3, -4, -17 models)
• VSWR:
  2.0:1
• Gain:
  equivalent to a λ/4 stub
• Impedance:
  50Ω
• Polarization:
  vertical
• Radiation Pattern:
  omni-directional
• DC resistance:
  grounded
• Power Handling:
  50 watts
• Drag @ sea level:
  0.5 lb
• Side Load Strength:
  > 3 lb
• Altitude Performance:
  up to 35,000 ft
• Approvals:
  TSO C37d & C38d
• D0160C ENV CAT.:
  F2-ABCXXXXXXXXXXXXXXXX DM C60-171

Product Codes

• Mfr Part No
  DM c60-17-1
• ECCN
  7A994
• SCHEDULE B CODE
  8526106000
• TSO
  C37d,C38d
