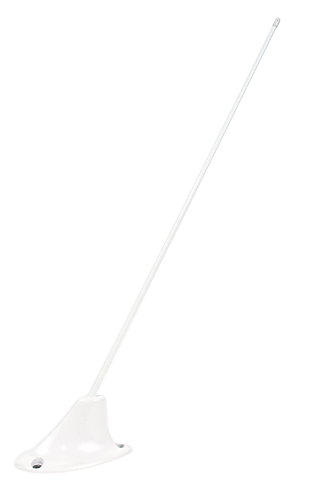

DM C63-4/A VHF Comm Rod Antenna | 138-174 MHz, BNC

Product Description

The DM C63 series antennas are VHF communication antennas designed for high mechanical strength with machine tapered aluminum alloy radiating elements. The DM C63-4/A vertically polarized antenna covers a frequency range of 137 MHz – 137 MHz for both transmitting and receiving applications. All DM C63-Series antennas are supplied with a gasket and a doubler plate.


This C63 series VHF antenna (EDMO# DM C63-4/A) is designed for mounting on top of the fuselage and has a BNC female connector.

Specifications

• Weight:
  8 oz
• Dimensions:
  17.0 in, height 4.63 in, base
• Connectors:
  BNC female
• Finish:
  white
• Frequency Range:
  138 MHz – 174 MHz (DM C63-4/A)
• VSWR:
  3.0:1 (DM C63-4/A)
• Polarization:
  vertical
• Impedance:
  50Ω
• Gain:
  equivalent λ/4 stub
• Power:
  50 watts
• Radiation Pattern:
  omnidirectional
• Approvals:
  n/a (DM C63-4/A)

Product Codes

• Mfr Part No
  c63-4/a
• ECCN
  7A994
• NSN
  5985-01-151-7130
• SCHEDULE B CODE
  8526.10.6000
