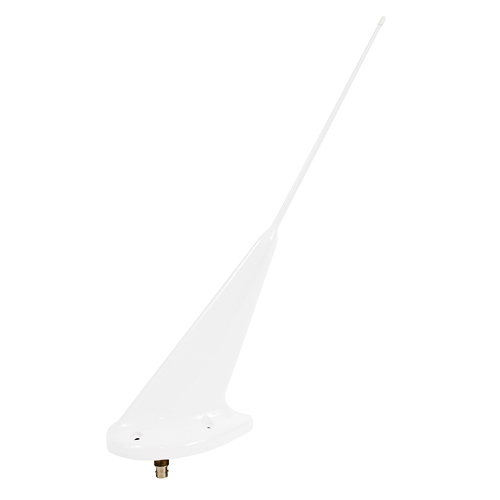

DM C70-6 VHF Broadband Antenna | 360/720 Channel, 15.0in tall

Product Description

The C70 Series VHF Communication Antennas are designed to be installed on the top or bottom on high-performance, single, twin and turbo engine fixed and rotary wing aircraft. These uniquely designed antennas offer mechanical strength and high electrical efficiency to provide maximum reliability and full 360/720 channel transceiver operation. Its lightweight profile is unobtrusive, resists icing, and has low drag.


This C70 series VHF communication antenna (EDMO# DM C70-6) has a 4-mounting pattern, a BNC connector,  and a 3.62 x 5.37 inch footprint. It is also directly interchangeable with part numbers: C598501-0104, VF 10-210, CI 109, and CI 121.

Specifications

• Weight:
  12 oz (0.34 kg)
• Dimensions:
  15.0 in, height 4.26 in, base
• Connector:
  BNC female
• Finish:
  white polyurethane
• Frequency Range:
  118 MHz – 137 MHz
• VSWR:
  2.0:1 (DM C70-1/A)
• Polarization:
  vertical
• Power:
  50 watts
• Impedance:
  50Ω
• Radiation Pattern:
  omni directional
• Connectors:
  BNC female
• Speed Rating:
  400 MPH (DM C70-1/A)
• Approvals:
  TSO C37d, TSO C38d

Product Codes

• Mfr Part No
  C70-6
• ECCN
  7A994
• SCHEDULE B CODE
  8526.10.4000
• TSO
  C37d,C38d
