DM H21-1 Antenna Coupler | Includes Marker Beacon Support

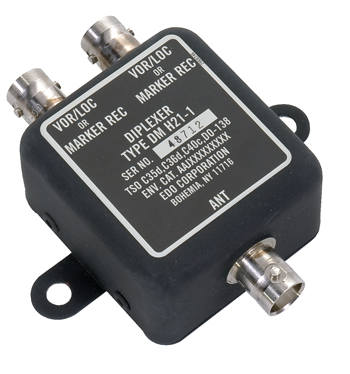

DIPLEXER/DUAL VOR/DUAL MKR/BNC CONNECTOR - DM H21-1

HARRIS CORP

Call For Pricing

Available to order

EDMO # DM H21-1

MFR Part # H21-1

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The H series antenna couplers are designed are designed to couple multiple receiver systems to a single antenna with minimum insertion loss. These antenna couplers allow signal from a single antenna to be split equally to either redundant systems or provide a dual function role, such as glide slope and VHF range localizer. The H series has a rugged construction built with an aluminum housing which fully encapsulate all circuit elements.

This H21 antenna coupler (EDMO# DM H21-1) includes marker beacon support.

Features

Instrument landing system redundant couplers
Rugged, fully encapsulated designs
Minimum insertion loss
Standard mounting

Specifications

Weight:

4 oz
Frequency Range:

329 MHz – 335.3 MHz 108 MHz – 118 MHz 74.75 MHz – 75.25 MHz (H21-1 only)
VSWR:

< 1.5:1 dB (VOR/LOC) < 1.5:1 dB (Glide Slope) < 2.0:1 dB (marker beacon), H21-1 only
Impedance:

50Ω
Isolation:

< 20 dB (VOR/LOC to VOR/LOC) < 40 db (VOR/LOC to VOR/LOC) < 14 dB (Glide slope from VOR/LOC) < 14 dB (marker beacon to marker beacon)
Insertion Loss:

0.5 dB, max (glide slope port H22-1 & H23-1) 0.5 dB, max (VOR/LOC port H22-1) 3.5 dB, max including power split (VOR/LOC ports, H21-1, H23-1 and glide slope ports H24-1) 3.6 dB, max (Marker beacon ports, H21-1)
Power Handling:

receive only
Approvals:

FAA TSO C34c, TSO C35d, TSO C36d, TSO C40c
