DM H23-1 Antenna Coupler | Dual VOR, Single GS, BNC Connector
HARRIS CORP
EDMO#: DM H23-1
MFR#: H23-1
Description
The H series antenna couplers are designed are designed to couple multiple receiver systems to a single antenna with minimum insertion loss. These antenna couplers allow signal from a single antenna to be split equally to either redundant systems or provide a dual function role, such as glide slope and VHF range localizer. The H series has a rugged construction built with an aluminum housing which fully encapsulate all circuit elements.

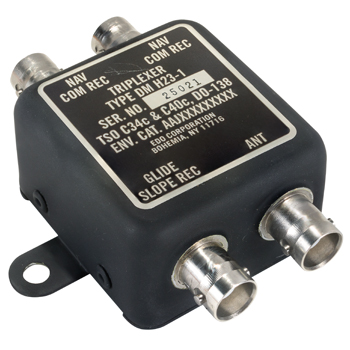

This H23 antenna coupler (EDMO# DM H23-1) supports Dual VOR and single GS operations and has a BNC connectors.
Features
- Instrument landing system redundant couplers
- Rugged, fully encapsulated designs
- Minimum insertion loss
- Standard mounting
Specifications
Weight:
4 oz
Frequency Range:
329 MHz – 335.3 MHz
108 MHz – 118 MHz
74.75 MHz – 75.25 MHz (H21-1 only)
VSWR:
< 1.5:1 dB (VOR/LOC)
< 1.5:1 dB (Glide Slope)
< 2.0:1 dB (marker beacon), H21-1 only
Impedance:
50Ω
Isolation:
< 20 dB (VOR/LOC to VOR/LOC)
< 40 db (VOR/LOC to VOR/LOC)
< 14 dB (Glide slope from VOR/LOC)
< 14 dB (marker beacon to marker beacon)
Insertion Loss:
0.5 dB, max (glide slope port H22-1 & H23-1)
0.5 dB, max (VOR/LOC port H22-1)
3.5 dB, max including power split (VOR/LOC ports, H21-1, H23-1 and glide slope ports H24-1)
3.6 dB, max (Marker beacon ports, H21-1)
Power Handling:
receive only
Approvals:
FAA TSO C34c, TSO C35d, TSO C36d, TSO C40c
Product Codes
Mfr Part No :
H23-1
ECCN :
7A994
SCHEDULE B CODE :
8526.10.6000
TSO :
C34c,C40c
