H69-1 Dual NAV/GS Quadraplexer Antenna Coupler | BNC Connectors

Product Description

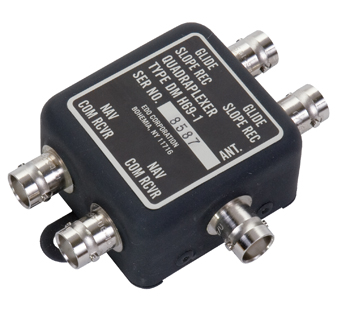

The DM H69-1 quadraplexer antenna coupler provides the ability to operate dual NAVS and dual glide slope receivers from one VOR antenna. This lightweight and compact unit is design to couple multiple systems to a single antenna with minimal insertion loss and signal isolation to prevent intersystem crosstalk.

Specifications

• Weight:
  4 oz
• Connector:
  BNC male
• Frequency Range:
  108 MHz – 118 MHz 329 MHz – 335.3 MHz
• VSWR:
  2.0:1
• Impedance:
  50Ω
• Isolation:
  VOR: 18 dB, min VOR-GS: 20 dB, min GS-GS: 18 dB, min
• Insertion Loss:
  VOR: 1 dB, max GS: 1 dB, max
• Power Handling:
  Receive only
• Environmental:
  MIL-E-5400 CLASS II Vibration 1A

Product Codes

• Mfr Part No
  H96-1
• ECCN
  7A994
• SCHEDULE B CODE
  8526.10.6000
