N4-33 Low Drag Balanced Loop VOR/LOC Antenna | 108–118MHz, Single BNC Connector, Blade Set

HARRIS CORP

Call For Pricing

Available to order

EDMO # DM N4-33/C

MFR Part # N4-33/C

Need help placing an order? Call 800-235-3300 or Contact us

Product Description

The N4-33 VOR/LOC antenna has a low drag balanced loop design for use on high performance aircraft where aerodynamic drag must be kept to a minimum. The N4-15 antenna provides increased range and reduced barring error. Rugged construction provides erosion resistance; a flush fiberglass housing improves aerodynamics; and a foam-filled assembly ensures maximum durability.

The N4-33 is intended for retrofit installation or antenna modifications on existing aircraft. Dual antenna capability can be achieved by using a hybrid coupler such as the H21 series couplers.

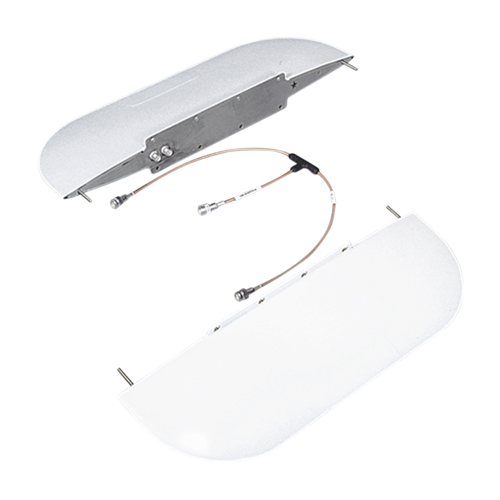

This VOR/LOC balance loop blade antenna (EDMO# DM N4-33/C) has a single BNC connect and is a set of two blade antennas.

Features

Low-drag balanced loop design
Low aerodynamic drag
Metal construction with foam-filled assembly offers lasting durability
Flush fiberglass housing improves aerodynamic properties

Specifications

Weight:

5.5 lb
Connector

: Two TNC Output Connectors
Frequency Range:

108 MHz – 118 MHz
VSWR:

5:1, max
Impedance:

50Ω
Polarization:

horizontal
Radiation Pattern:

hemispherical
DC Resistance:

Omni-directional in the azimuth plane, approx. cos q in the vertical plane
Power handling:

receive only
Approvals:

FAA TSO C40a
