DM N4-7 High Sensitivity Balanced Loop VOR/LOC Antenna | BNC Connector, 6-hole Mount, Black Finish

Product Description

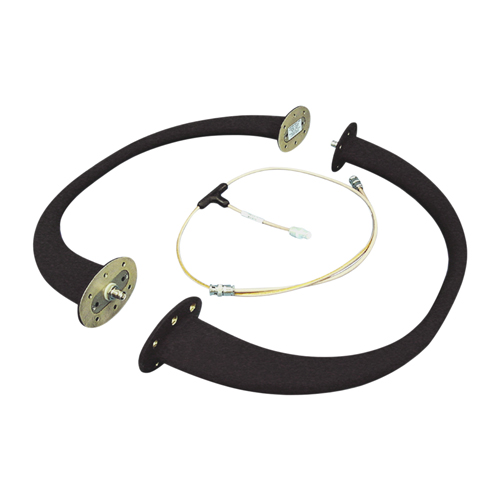

The DM N4-7 VOR/LOC navigation antenna is a true center-fed balanced loop antenna with a high sensitivity and low bearing errors. The N4-7 system consists of two center-fed half-loops and a cable which enables a closed loop current flow allowing for improved signal to noise ratio and higher cross-polarized signal rejection. These rugged antennas have proven reliable service on aircraft such as Lockheed Jet-star, P-3A, and C-141 Starlifter, Bell UH1B helicopter, Sikorsky H34 helicopter, Convair 340, Aero Commander, North American Sabreliner, Douglas DC-3, Beech King Air and many other corporate and commercial aircraft.

Specifications

• Weight:
  4.2 lb
• Connector:
  BNC
• Frequency Range:
  108 MHz – 122 MHz
• VSWR:
  < 5.0:1
• Gain (rel to isotropic):
  0±2 dB
• Impedance:
  50Ω
• Polarization:
  horizontal
• Efficiency:
  95%
• Power Handling:
  receive only
• Environmental:
  Military: MIL-E-5400, MIL-T-5422, MIL-F-17555, MIL-T-18303, MIL-T-18307 FAA: TSO C40a

Product Codes

• Mfr Part No
  N4-7
• ECCN
  7A994
• NSN
  5826-00-887-1940
• SCHEDULE B CODE
  8526106000
• TSO
  C40a
